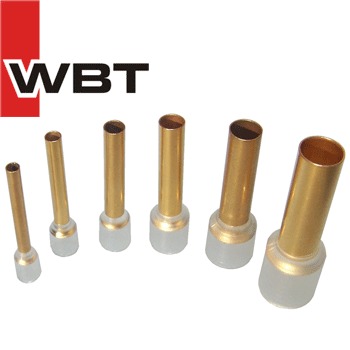

WBT Copper Cable End Sleeves with Insulation

WBT cable end sleeves are made of special oxygen-free copper and then 24k gold plated for protection. Products range from 1.65 to 6mm internal diameter.  This range has the additional feature of an insulated neck.

Sold Individually.

PRICE (each)
WBT-0441 - 1.25mm sq, AWG 15, 1.65mm internal diameter of copper sleeve, length of copper sleeve 18mm, overall length 25mm, internal diameter of insulated sleeve 3.3mm - £1.47 +vat+p&p

WBT-0442 - 2.5mm sq AWG 13, 2.1mm internal diameter of copper sleeve, length of copper sleeve 18mm, overall length 25mm, internal diameter of insulated sleeve 3.9mm- £1.63 +vat+p&p

WBT-0443 - 4mm sq AWG 11, 2.7mm internal diameter of copper sleeve, length of copper sleeve 18mm, overall length 25mm, internal diameter of insulated sleeve 4.3mm - £2.02 +vat+p&p

WBT-0444 - 6mm sq AWG 9, 3.4mm internal diameter of copper sleeve, length of copper sleeve 18mm, overall length 25mm, internal diameter of insulated sleeve 5.9mm- £2.43 +vat+p&p

WBT-0445 - 10mm sq AWG 7, 4.5mm internal diameter of copper sleeve, length of copper sleeve 18mm, overall length 25mm, internal diameter of insulated sleeve 6.7mm - £3.13 +vat+p&p

WBT-0446 - 16mm sq AWG 5, 6mm internal diameter of copper sleeve, length of copper sleeve 18mm, overall length 30mm, internal diameter of insulated sleeve 8.3mm - £3.45 +vat+p&p

Big Picture
Drawing
Datasheet51.44 KB
