Obbligato Film Oil PSU Capacitors
Click to Zoom
The Obbligato Film Oil caps offer a low cost but high-quality solution for "old school" style, reservoir capacitors. Ideal for valve amp power supplies. Offering a long life and outstanding performance.
Most are radial bodied with leadout terminated. 47uF and 100uF type are axial bodied.
Internal windings are extra tight, using thickly coated aluminium film imported from Germany. Rated at 400Vdc to 630Vdc with a tolerance of 5%.
The 2.2uF and 4.7uF are now white in appearance and use solder tags.
Specifications
Capactiance: 2.2uF - 100uF
Voltage: 630Vdc (100uf version 400Vdc rated)
Lead Length for radial types: 1mm dia. x 90mm length (PTFE covered copper leadout)
Big Picture
Film Oil 2.2uF - with solder tags106.08 KB
Film Oil 4.7uF - with solder tags112.29 KB

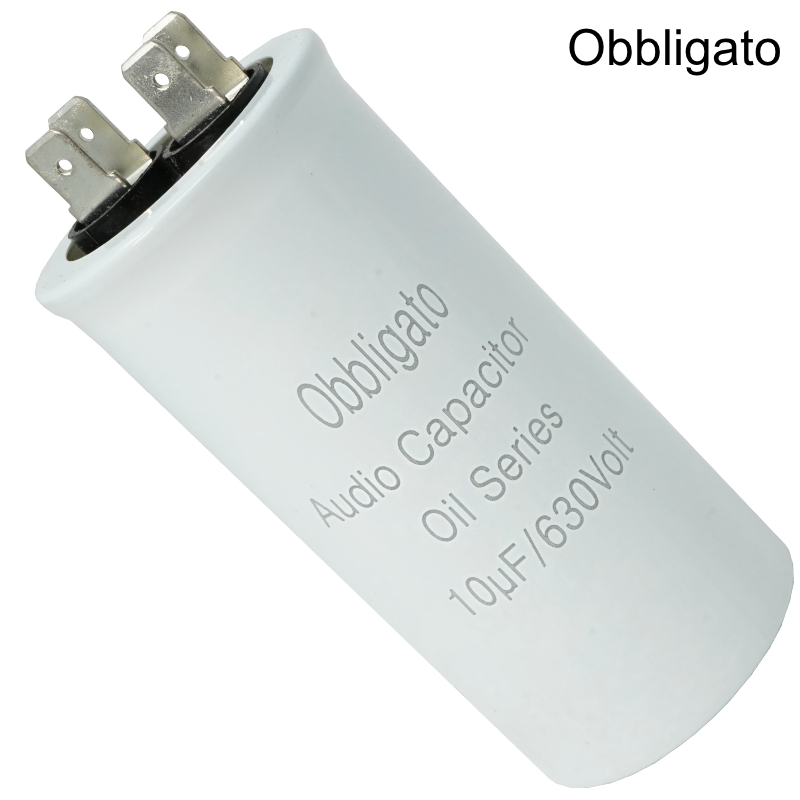

Film Oil 10uF - with solder tags136.42 KB
Film Oil 22uF - with solder tags121.49 KB
