Mundorf Ferrite/Aronit PipeCore inductors - P/BP Series

MCoil’s pipe core coils combine the balanced, detailed and dynamic tone colour of OFC round wire with the low output distortions and internal resistance of Aronit cores. They are therefore an excellent choice for good value and compact yet high-capacity middle-low and low frequency coils, including for PA applications. Now called the P-core ranges, because the aronit core has a 5mm fixing hole in the centre.

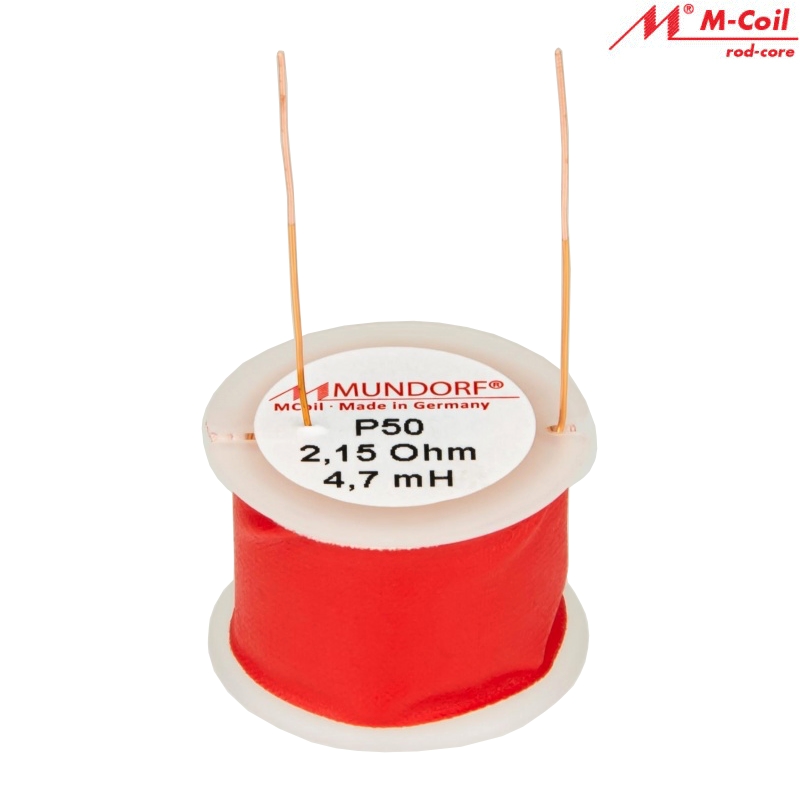

P50 - wire Ø 0.5mm
P71 - wire Ø 0.71mm
P100 - wire Ø 1.00mm
P125 - wire Ø 1.25mm
P140 - wire Ø 1.40mm

The great features of P cores can be enhanced even further with the BP ranges which use self-bonding wire.

BP71 - wire Ø 0.71mm
BP100 - wire Ø 1.00mm
BP125 - wire Ø 1.25mm
BP140 - wire Ø 1.40mm

Technical specifications:
Core material: ARONIT
OFC-Copper 99.99%
Coil form: PA, fibre-glass reinforced
Coil body heat resistant up to max. 230°C/446°F

Please note that due to the large range of values and types of Mundorf coils, they are made to order, so please allow 18 days for dispatch.
