KLE Innovations Silver Harmony RCA Plug

Click to Zoom

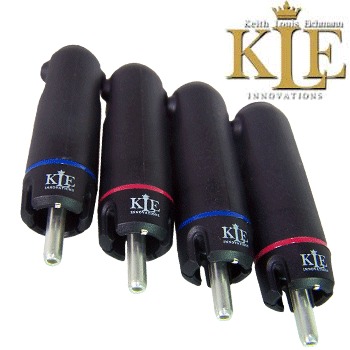

KLE Innovations Silver Harmony RCA Plug

The Harmony® Plug is a new revolutionary approach to Keith Louis Eichmann’s (aka KL) previous Bullet Plug design, which itself was a revolutionary approach to Phono/RCA connection. It represents a wholesale rethinking of something as basic as the venerable Phono/RCA plug; a connector designed over Sixty years ago by The Radio Corporation of America (RCA). It is KL’s contention that the Phono/RCA plugin its current configuration is the standard connector in the audio/video industry not because it is the best possible choice for its intended use, but more by reason of default and its ultimate potential.
The Silver Harmony version is the 2nd of the 3 new Harmony plugs. In simple terms, they are silver-plated pure copper/silver RCA plugs.

Silver® Harmony Plug Comparison / Improvements… the following are the improvements that Keith Louis Eichmann (aka KL) has made to the Silver®Harmony Phono/RCA plug design when compared to his previous Bullet® Plug design…

Specifications
  • Signal/Ground pins are pure Copper/Silver and >106% IACS.
  • Signal/Ground pin optimization to enhance electron flow, in accordance with KL’s Silver Hybrid Signal/Ground formula.
  • Signal/Ground pins are now much stronger and shaped like a tag, which makes soldering small/large/multiple wires, very easy.
  • Signal/Ground Anti-Short shield has been added between the Signal/Ground solder tags.
  • Signal/Ground pins are arranged to maintain a maximised distance from each other, and the utilised foil technology ensures that Capacitive, Inductive, and EMF effects are minimized.
  • The Head Assembly jaw structure has been redesigned and mechanically improved, to allow an easy snap-like connection to a Phono/RCA socket, ensuring the ultimate connection with easy removal.
  • Ground pin includes thread teeth which ensures that a metal Housing is star-point grounded.
  • The Housing Assembly uses 2 screws to retain and secure the Cable.
  • Extremely high-temperature melting point thermoplastic polymer has been utilized

Cable entry diameter
You can see from the "dis-assembled view" picture (see link below) that the plug comes with a detachable rubber grommet. This grommet sits at the cable entry end and has a hole of diameter 4mm. This can be removed giving an overall cable entry of 9.5mm.

PRICE:
Pack of 4 plugs, 2 marked white, 2 marked red (grey KLE logo) - £65.00 +vat +p&p
