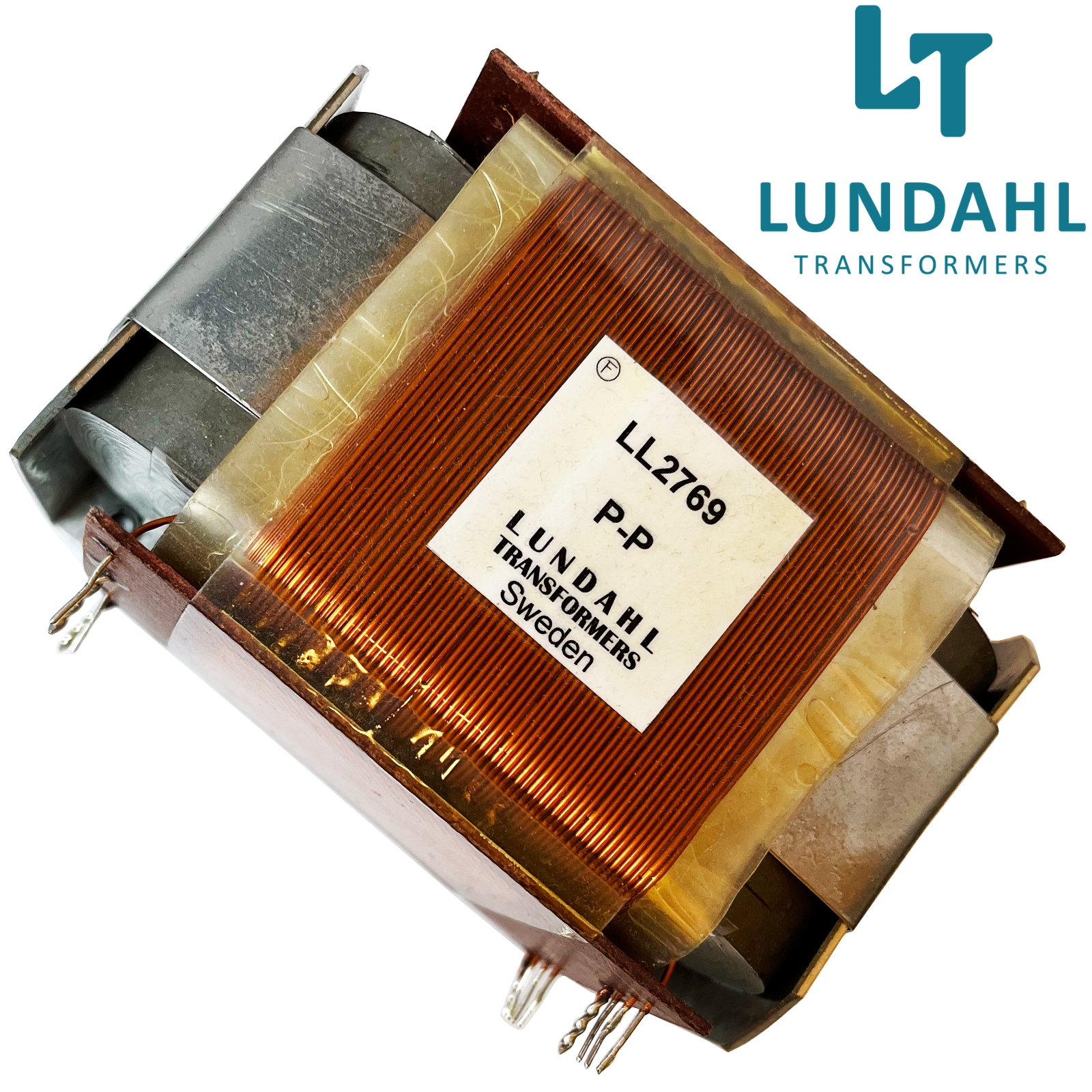

LL2769: Lundahl Output Transformer

The LL2769 is only available in one version.

• Push-Pull

(N.B. The purpose of the airgap is to accept the DC current of the output valve without saturating the core, leaving enough headroom for the sound signal)

The constructor can adjust the following primary and secondary impedances depending on how the winding sections of the transformers are wired together via the exposed solder pins.

Primary impedance: Secondary impedance

• 4K7: 5R or 8R
• 4K7: 5R and 8R (switchable)

As featured in the ELEKIT TU-8340VK

For more information on this product, please click HERE
