ANK Audio Kits Upgrade, Kit1 - 300B

Upgrade Kit for the Kit1 300B Amplifier

PLEASE CHECK THAT YOUR KIT USES THE COMPONENTS LISTED BELOW - THERE ARE VARIATIONS OF THIS DESIGN

Kit contents:

Power Supply PCB:
2x 2K2 1W Audio Note Tantalum Non-Magnetic Resistors (R5, R7)
1x 82K 1W Audio Note Tantalum Non-Magnetic Resistor (R2)
1x 100R 1W Audio Note Tantalum Non-Magnetic Resistor (R1)
2x 220K 1W Audio Note Tantalum Non-Magnetic Resistors (R9, R10)
1x 330K 1W Audio Note Tantalum Non-Magnetic Resistor (R3)
2x 2K7 1W Audio Note Tantalum Resistors (R6, R8)

Driver PCB:
2x 330K 1W Audio Note Tantalum Non-Magnetic Resistors (R1, R2)Driver PCB:
2x 680R 1W Audio Note Tantalum Non-Magnetic Resistors (R3, R8)
2x 470K 1W Audio Note Tantalum Non-Magnetic Resistors (R4, R7)
6x 82K 1W Audio Note Tantalum Non-Magnetic Resistors (R9, 10, 11, 12, 13 & 14)
2x 1K 1W Audio Note Tantalum Non-Magnetic Resistors (R15, R18)
4x 820R 1W Audio Note Tantalum Non-Magnetic Resistors (R16, 17, 19 & 20)
2x 1M 1W Audio Note Tantalum Non-Magnetic Resistors (R21, R22)
4x 0.22uF Audio Note Copper Foil Caps

For more information on the Kit1 please click HERE

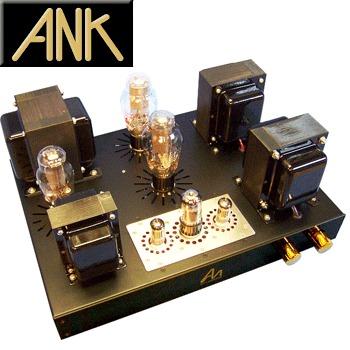

Please Note: ANK KIT1 not included, image for reference only.
