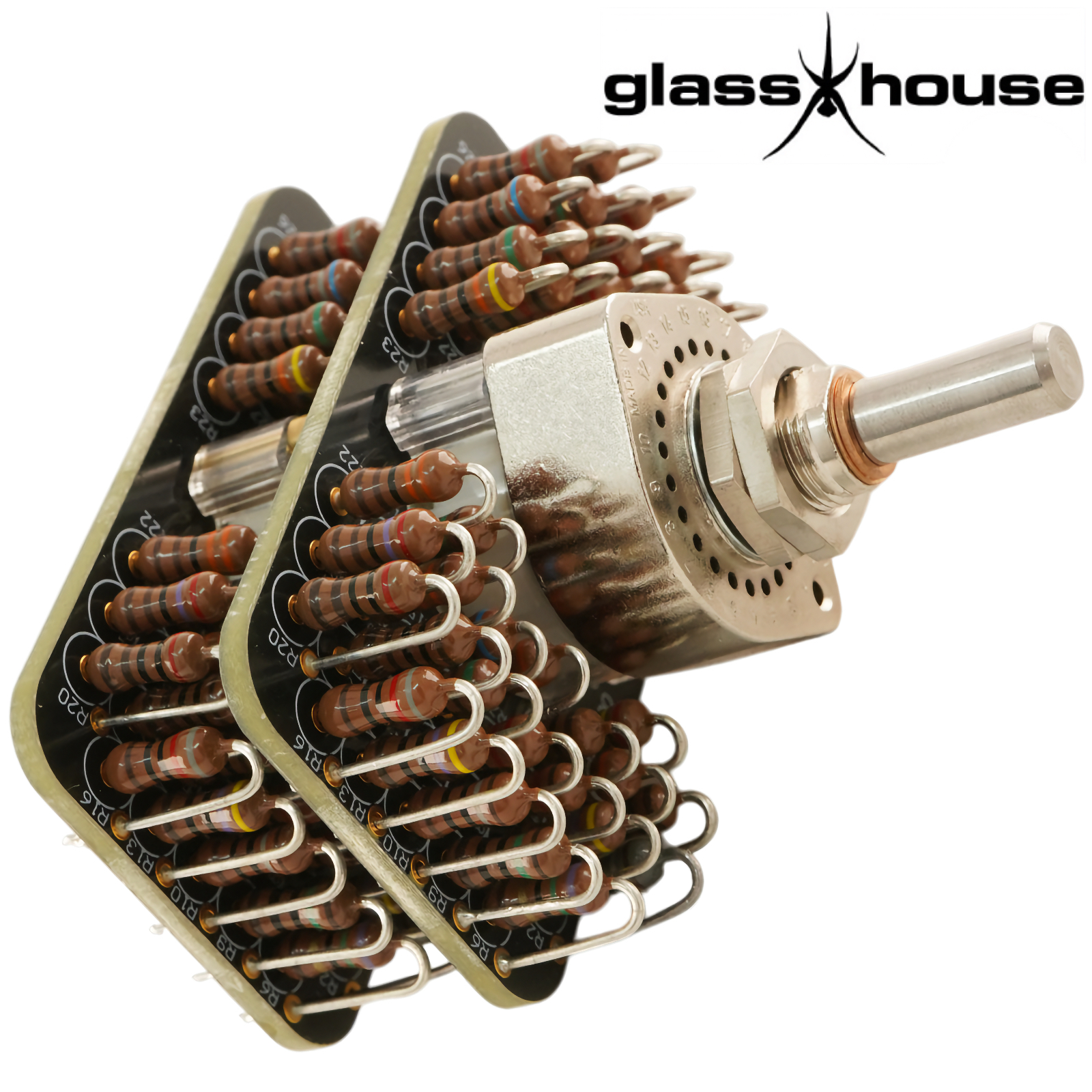

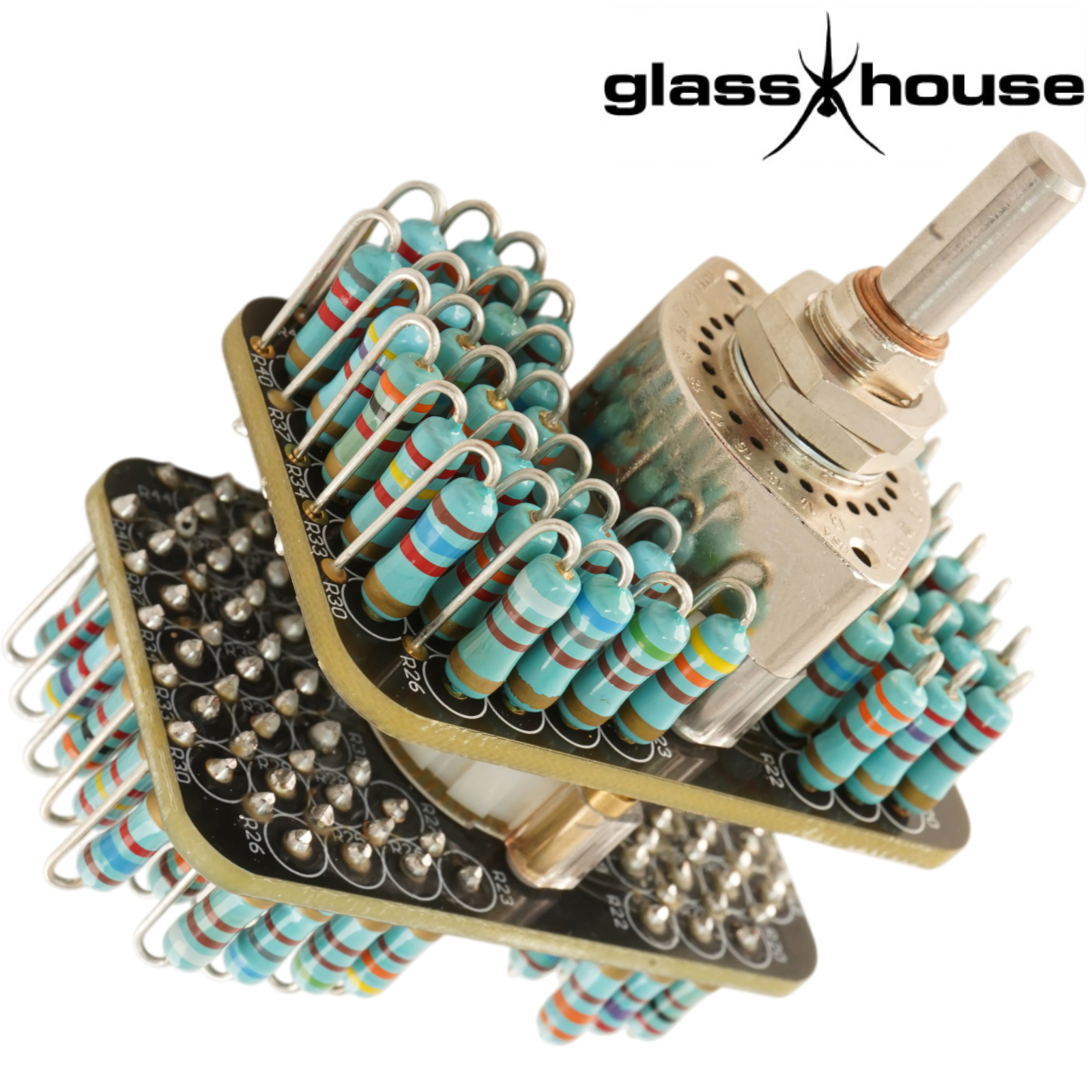

Glasshouse / Elma 2-pole 47-way JUMBO switch / Stereo Shunt Stepped Attenuator
Seeing the need for a dedicated shunt version of Elma`s 47, we worked closely with Elma to create a PCB that was not only a dedicated shunt design but could fit the larger 1W resistors. The Elma A47 Jumbo 2-pole 47-step mono attenuator offers great control over your volume sweep and an amazing performance. The resistor values we provide are 1dB steps.
The build is trickier than the 23 and 24-step. Finer soldering is needed, and a lot more soldering is required, with around 184 joins per switch.
We offer the option to choose from 19 different resistor types for this kit.
SERIES/LOAD RESISTOR FOR SHUNT TYPE
The series/load resistor of the shunt stepped attenuator range is worth discussing. All the signal passes through this resistor no matter your position on your volume control. So, this resistor is worth an upgrade. A popular choice is the Charcroft Z-Foil range or Audio Note Non-Magnetic Tantalum. If you wish to upgrade them, add them to your cart. x1 for a each mono, x2 for a stereo and x4 for a balanced. Choose the resistance close to the impedance of the stepped attenuator you buy. For example, for a Stereo Shunt 50K, you would have to add 2 off the CART 50K000B: 50K 0.4W Charcroft Z-Foil Resistor. If you are ordering a built version, mention in the comments box that you wish to have them fitted.
Dimensions
Shaft: 6mm diameter x 15mm length
Bush: 10mm diameter x 10mm length
Body, including resistors fitted, internal part, for 0.4W, 0.5W and 2W: 62mm x 38mm x 42mm height
Body, including resistors fitted, internal part, for 0.4W, 0.5W and 2W: 62mm x 38mm x 62mm height
starting at £240.72+vat+p&p
For the 100K 0.5W & 1W Takman Metal & Carbon versions, we supply a 91K load resistor.
For the 10K 0.5W Takman Metal & Carbon versions, we supply a 10K 1W load resistor.
We can only supply the 50K and 100K options for the various Audio Note resistor types.
We can only supply the 10K version of the Charcroft Z-Foil type.
Available as a kit or fully built. The build price is an additional £80.
Parts supplied with
- Elma 2-pole 47-way JUMBO switch
- Selected resistor set (92 resistors)
- 1m x Mundorf 3.8% silver/gold solder

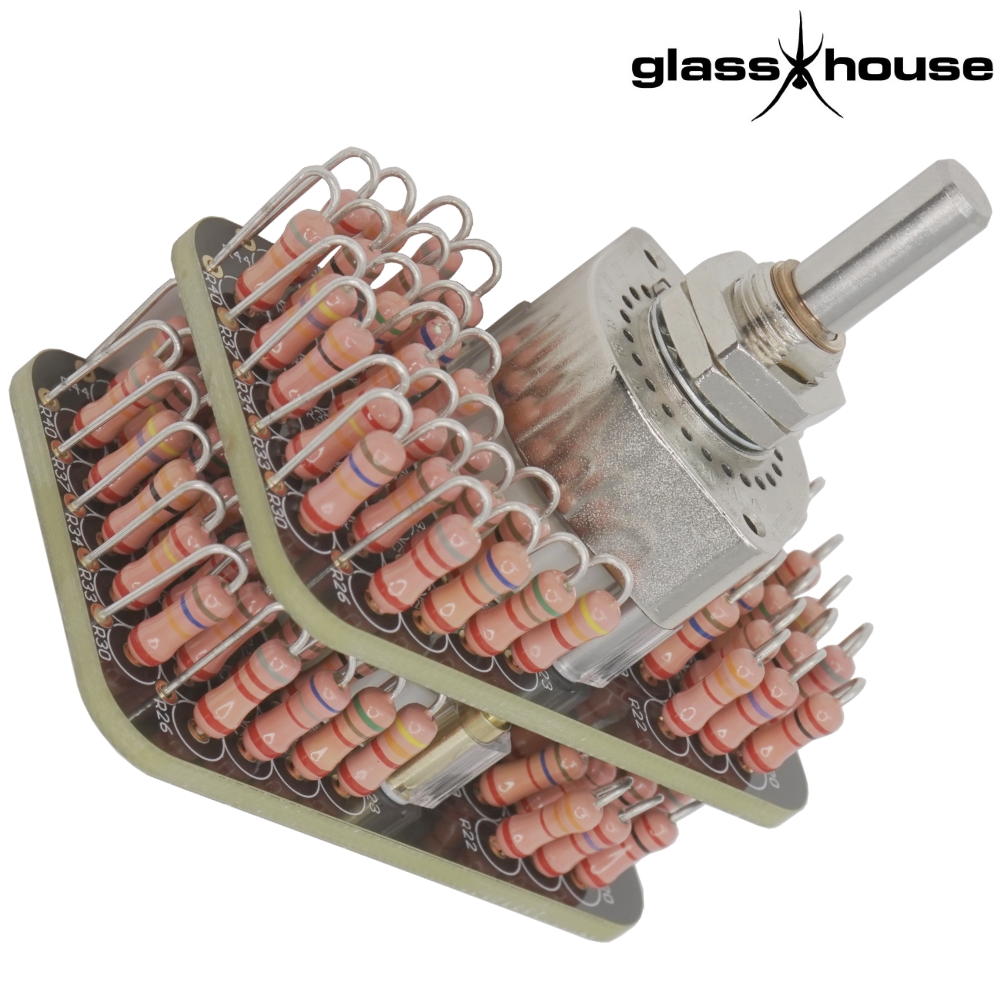

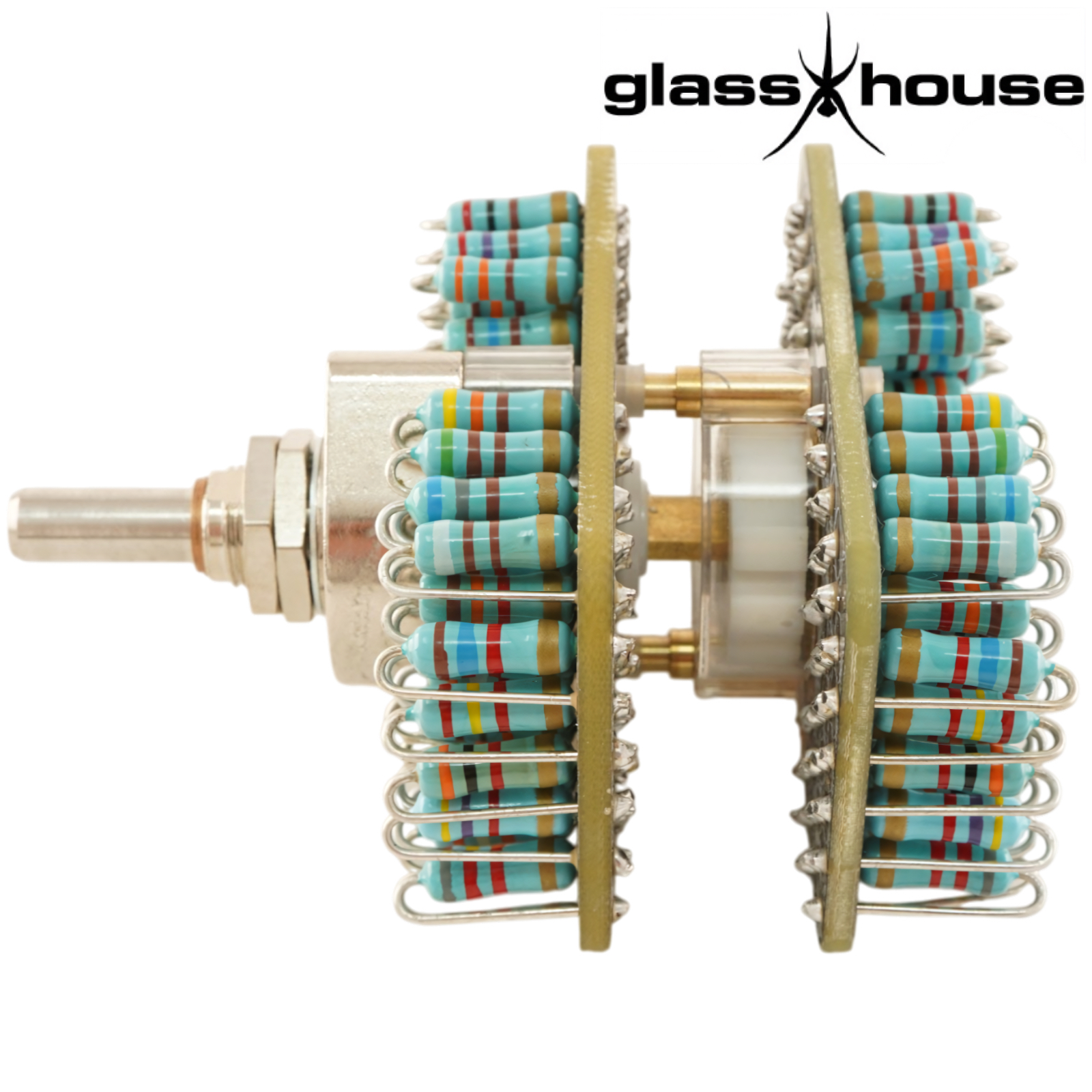

The picture shows the 1W Takman Carbon Film version
