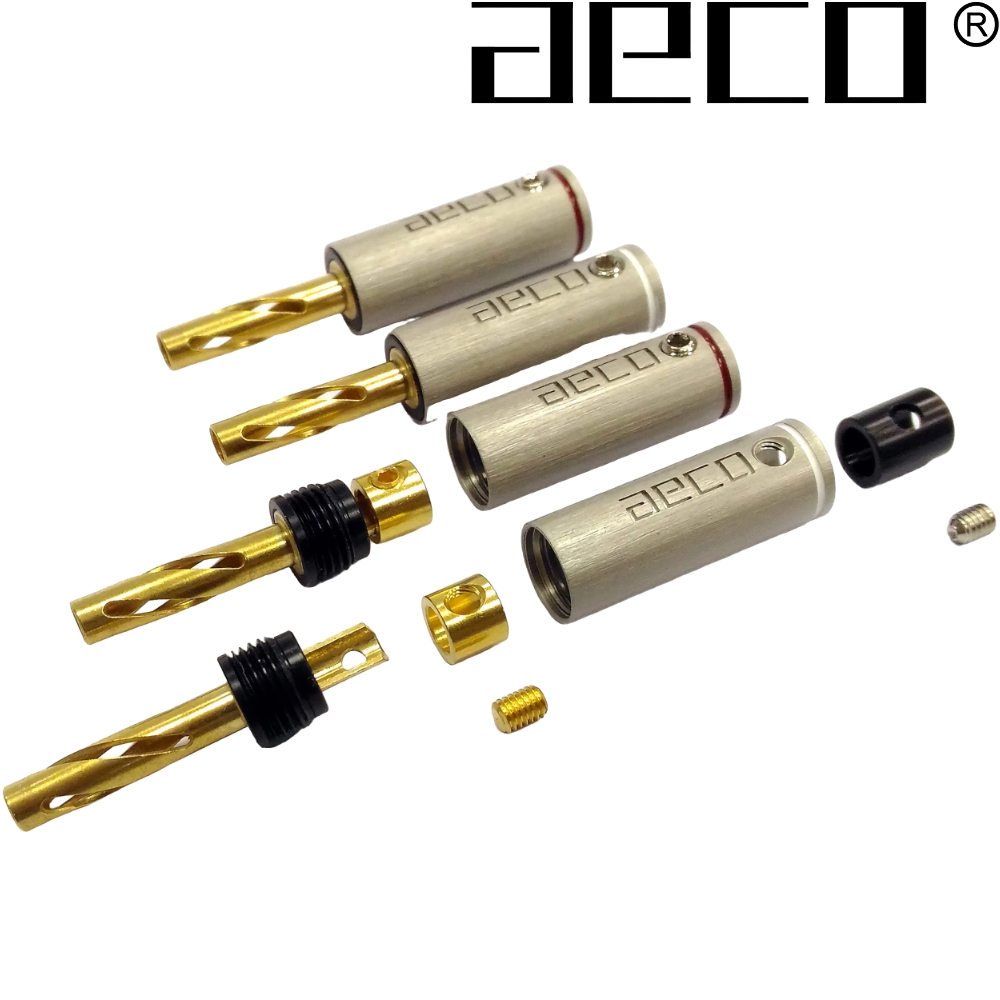

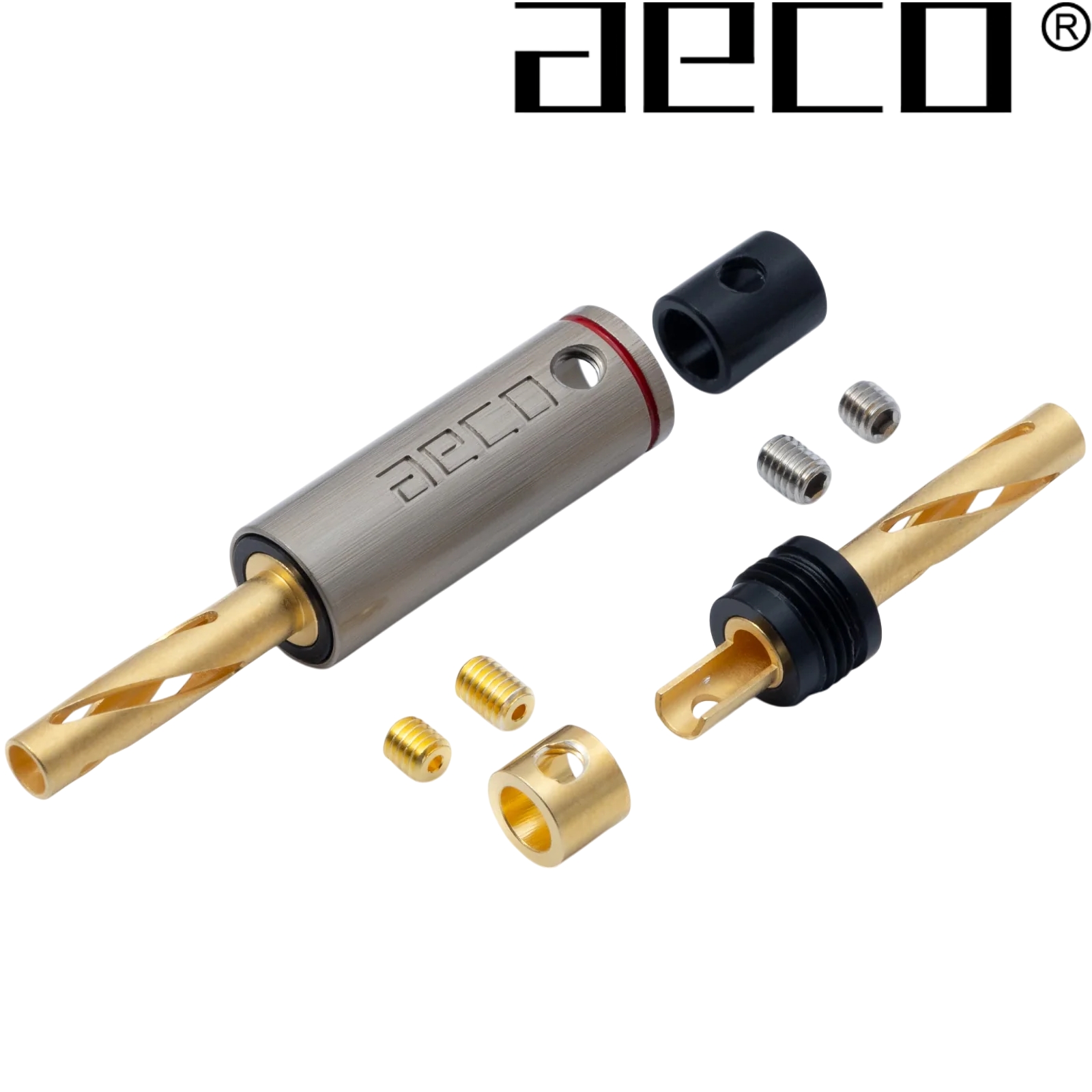

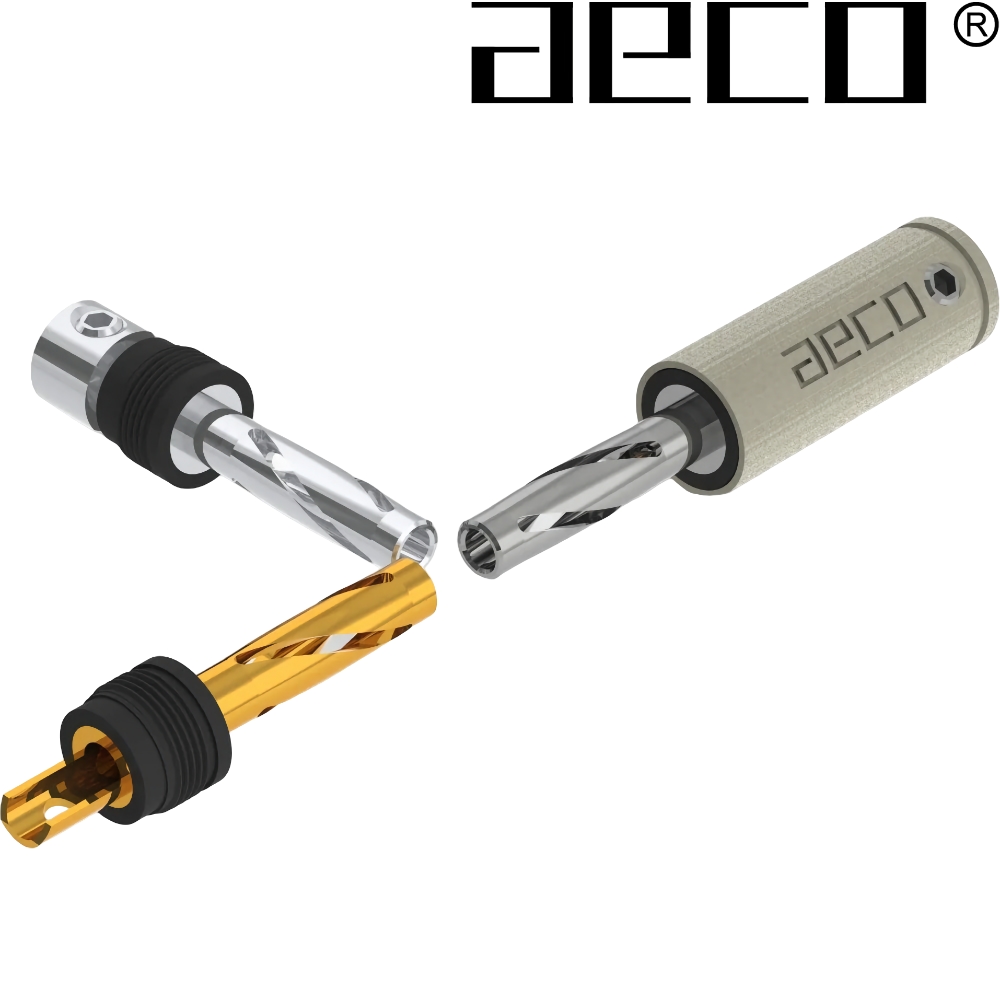

AECO ABP-1111 Banana Plugs, Tellurium Copper Gold-plated

The Tellurium Copper Gold-plated Banana plug from AECO. Featuring:

• Constructed from Tellurium high-purity copper (over 99%), Gold-plated
• It can accommodate cable up to 6.5mm in diameter.
• It has a solder-type connection or screw-type connection (internal ring and grub screw much be used).
• Single point conduction.
• Fully insulated protection.

Specifications:

Material:

• Body: Tellurium Copper (C14500 / copper contains over 99%)
• Headlock: POM
• Ring: Brass alloy (C3604)　　　
• Shell: Brass alloy (C3604) Logo lathing / Hairline surface treatment / Satin nickel plating
• Screw for conductor: Brass alloy (C3604)
• Screw for cable: Iron, Nickel plated.

Finish:

• Body: 10um Gold plating (no nickel base)
• Ring: 3um Gold plating (no nickel base)
• Screw for conductor: 3um Gold plating (no nickel base)

Electrical Characteristics:

• Contact resistance < 0.3 mOhm (It was tested by ABI-0601.)

Dimensions:

• The largest outside diameter is 9mm
• It can accommodate a cable up to 4.5mm in diameter with the sleeve.
• It can accommodate a cable up to 6.5mm in diameter without the sleeve.
• Total Length 43mm

Sold as a pack of 4, 2 x red & 2 x white.

PRICE (pack of 4)
£61.54 +vat +p&p
