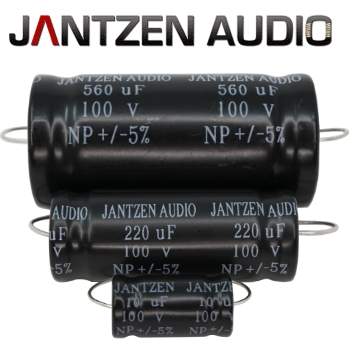

Jantzen eLeCap 5% Electrolytic Bipolar Capacitors
Click to Zoom
The Jantzen bipolar eLeCap 5%, is a standard-type aluminium electrolytic capacitor, using etched or “raw” foil.
With a low tolerance of only +/- 5% on capacitance, it is a more precise capacitor than most other standard-type electrolytic capacitors that usually have a tolerance of +/-10% on capacitance.
Being both price friendly and versatile, this capacitor is both a sensible choice for bass section application, but also when there is limited space on other sections of the crossover.
All Jantzen Caps are lead-free and RoHS compliant.
Specifications
- Capacitor foil: Aluminum electrolytic / metal oxide layer • Voltage rating: 100 VDC / 35 VAC
- Capacitance tolerance: +/- 5% (on nominal value)
- Capacitance change rate: Less than +/- 20%
- Temperature range: - 40C to + 85C
- Leakage current: < 0.003 CRUR (μA) /120S operation
- Dissipation factor: @1 KHZ, tgδ: Less than 200% of set value / @1 KHZ: less than 0.10
- Signal direction: Non-polarized (bi-polar capacitor)
If you are looking for a specific value, we have added a CAPACITOR FILTER to speed your search up.
Big Picture
eLeCap 5% - Large image186.26 KB
