ScanSpeak 10F, 4424G00 Full Range - Discovery Range

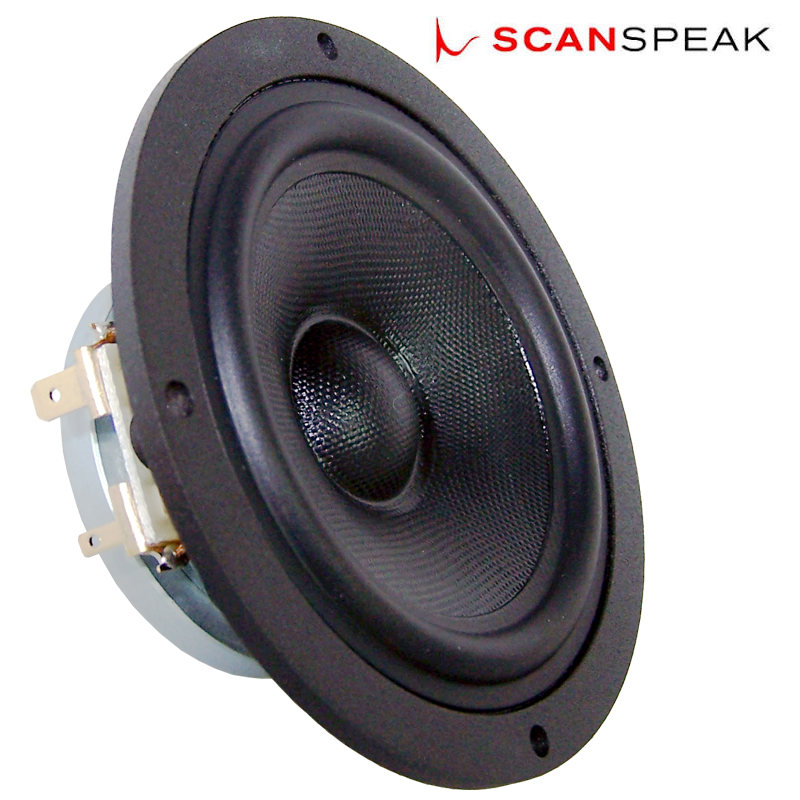

The ScanSpeak 10F, 4424G00 is a 3.5-inch full-range unit built on a neodymium magnet with a glass fibre cone. Offering a superb performance.

Specification:

• Resonance frequency [fs] 90 Hz
• Mechanical Q factor [Qms] 3.2
• Electrical Q factor [Qes] 0.32
• Total Q factor [Qts] 0.29
• Force factor [Bl] 3.9 Tm
• Mechanical resistance [Rms] 0.49 kg/s
• Moving mass [Mms] 2.8 g
• Compliance [Cms] 1.1 mm/N
• Effective diaph. diameter [D] 68 mm
• Effective piston area [Sd] 36 cm²
• Equivalent volume [Vas] 2.01 l
• Sensitivity (2.83V/1m) 89.8 dB
• Ratio Bl/√Re 2.2 N/√W
• Ratio fs/Qts 309 Hz

Electrical Data:

• Nominal impedance [Zn] 4 Ω
• Minimum impedance [Zmin] 3.8 Ω
• Maximum impedance [Zo] 34.5 Ω
• DC resistance [Re] 3.2 Ω
• Voice coil inductance [Le] 0.1 mH

Power Handling:

• 100h RMS noise test (IEC 17.1) 15 W
• Long-term max power (IEC 17.3) 30 W

Voice Coil & Magnet Data:

• Voice coil diameter 20 mm
• Voice coil height 9.2 mm
• Voice coil layers 2
• Height of gap 4 mm
• Linear excursion ± 2.6 mm
• Max mech. excursion ± 7 mm
• Unit weight 0.3 kg

PRICE (1 off)
£82.97 +vat +p&p
