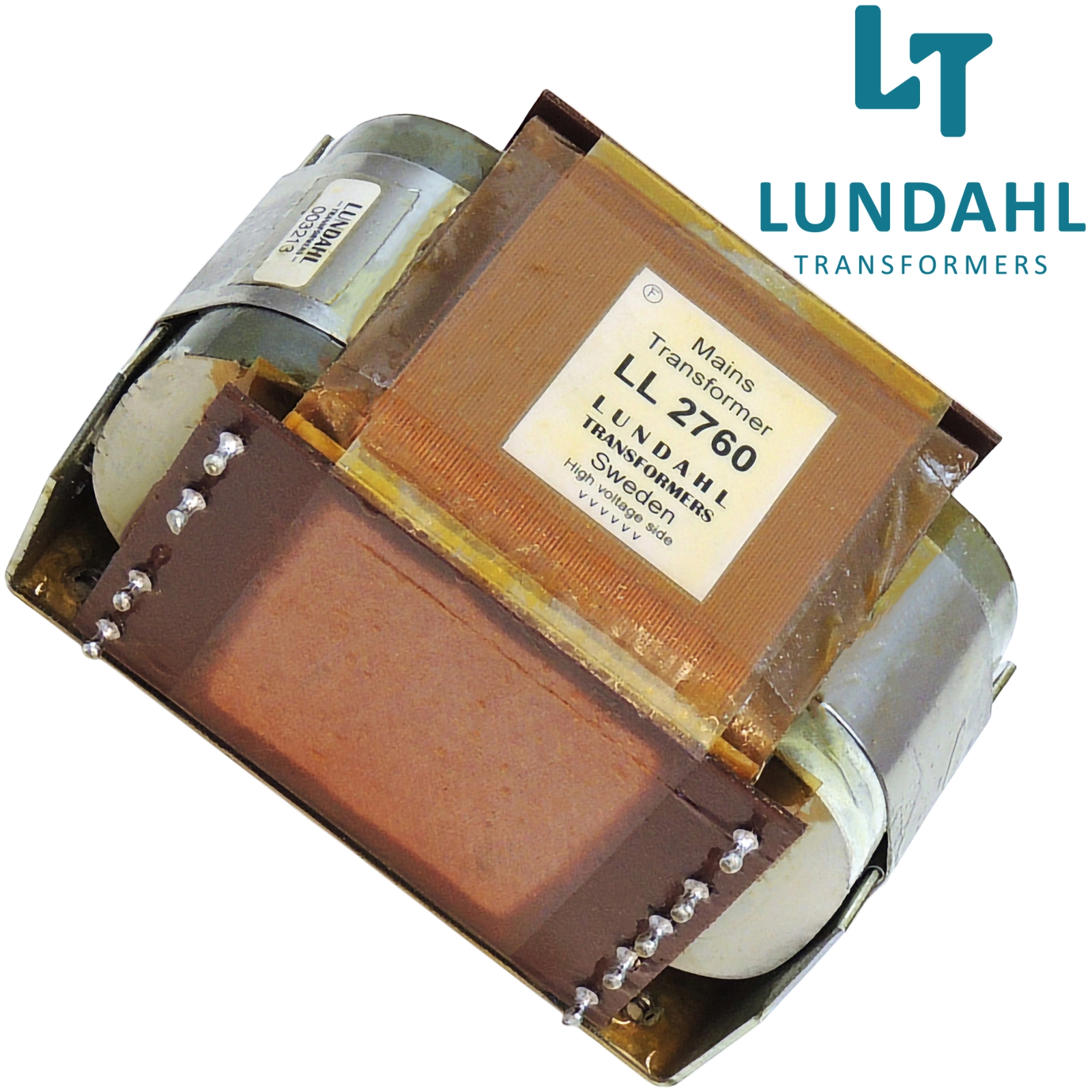

LL2760: Lundahl Mains Transformer
Click to Zoom
A C-core mains transformer for 2 x 115V / 0.9A . The core is assembled with a small air gap to compensate for any mains imbalance. Estimated power rating 200 VA (heat dissipation 11W) which can be increased with good cooling. Magnetic stray is extremely small due to the dual coil structure. A Faraday shield is provided between primary and secondary windings to improve immunity from mains HF noise.
Specifications:
- 250VA power rating
- The transformer primaries are connected in series for 210-250Vac and in parallel for 105-125Vac
- Secondary winding 1: 115V-0V-115V, 0.9A
- Dimensions - 118mm x 78mm x 77mm
- Silicon-iron (STANDARD) core material
PRICE (1 off)
£146.37 +vat +p&p
Non-Stock Item - Please allow 4-6 weeks for dispatch
PDF datasheet
LL2760 datasheet287.96 KB
