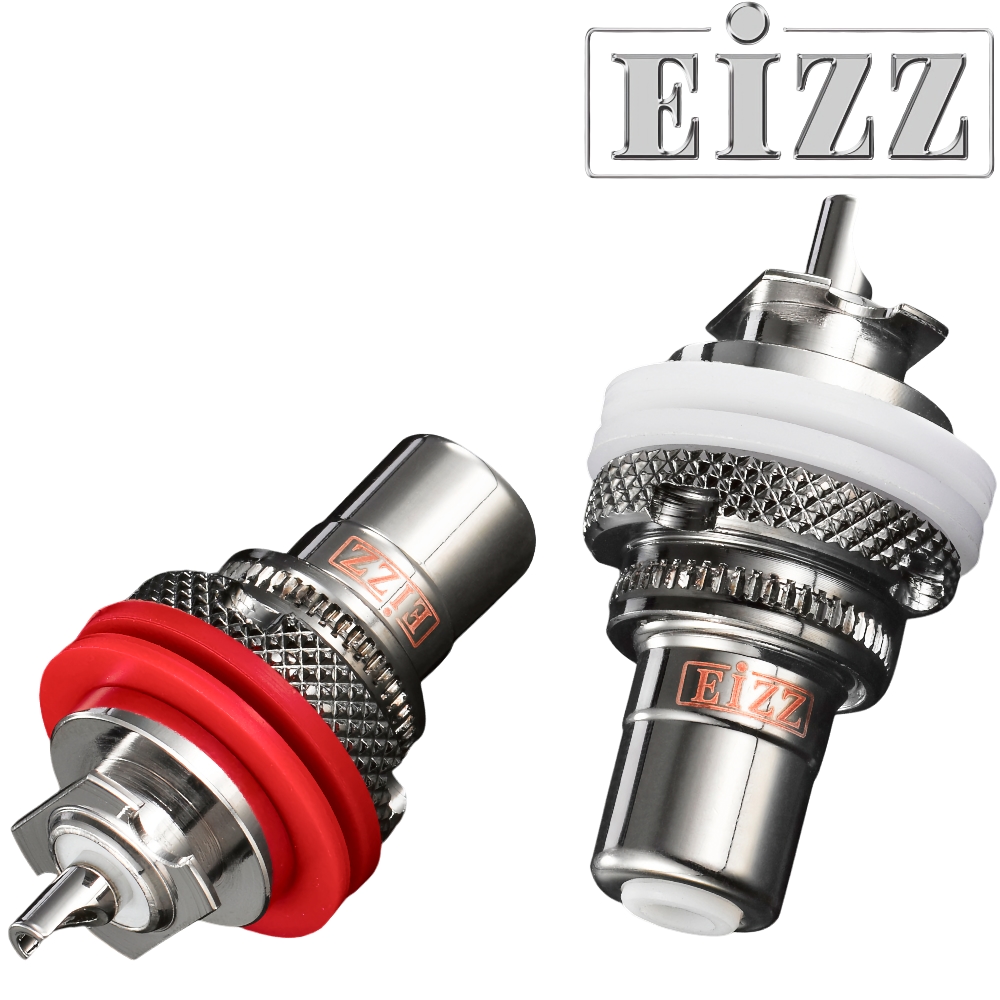

EIZZ EZ-104 RCA Socket, Tellurium Copper, Rhodium Plated
Click to Zoom
The EZ-104 from EIZZ are Tellurium Copper rhodium-plated chassis mount RCA sockets. They require soldering and are sold as a pair, one with red isolation washers and one with white.
Specifications:
- The connector is Rhodium-plated Tellurium Copper. (nickel free plate)
- PTFE insulation.
- Red and white marker washers to isolate from the chassis.
- The RCA socket has an external nut, making fitting easier.
- External nut is anodized aluminium.
- Solder connection only.
- Suitable panel thickness is 0.8mm to 5mm.
- Diameter of thread: 10mm.
- The panel cutout is 12mm in diameter with a 2.5mm (wide) x 2mm step to avoid rotation.
- The recommended distance between the two socket centres is 17.5mm.
- Body dimensions: 32.2mm length x 16mm diameter (widest).
PRICE (1 pair)
£18.98 +vat +p&p
