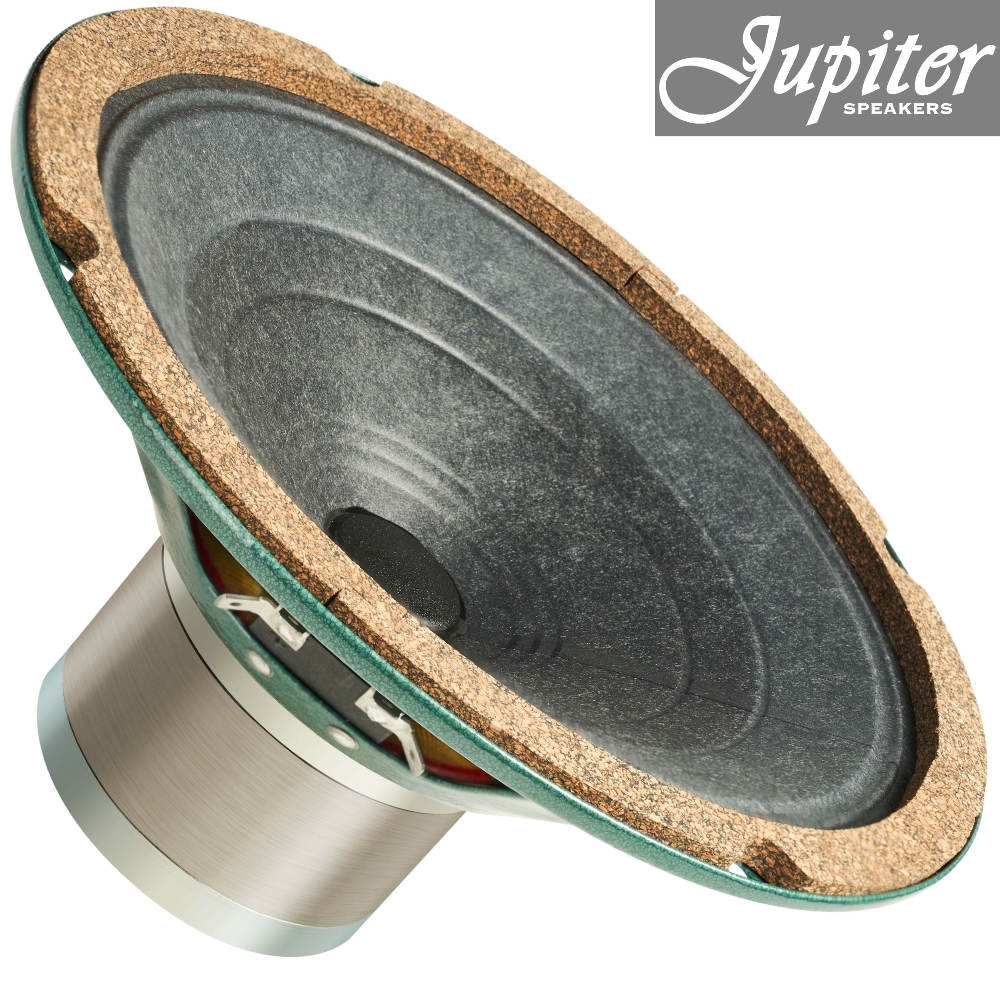

Jupiter Speakers 8SA-4, 8 inch 25W Vintage American Small Alnico Guitar Speaker, 4 ohm
Click to Zoom
Jupiter 8SA is an 8" 4 ohm seamed cone speaker with a Small Alnico Magnet, an upgrade replacement for Jensen P8R. The 8SA provides excellent tone and alnico chime in the Fender Champ and Gibson GA-5.
Dimensions:
- Diameter: 208mm
- Depth rear mount: 104mm
- Cut-out hole diameter: 183mm
- Mounting Holes: 8mm x 5mm
- Number of mounting holes: 4
- Mounting Hole Circle Diameter: 197mm
Specifications:
- Power Handling: 25W
- Voice Coil Diameter: 1"
- Magnet: Small Alnico - 14oz
- Weight: 1.41KG
PRICE (1 off)
£110.00 +vat +p&p
Big Picture
Jupiter Speakers 8SA-4 rear521.23 KB
Drawing
Jupiter Speakers 8SA drawing449.11 KB
