Seiden Switch, 2 pole 46 way switch, No. 62005, 62NEG
Click to Zoom

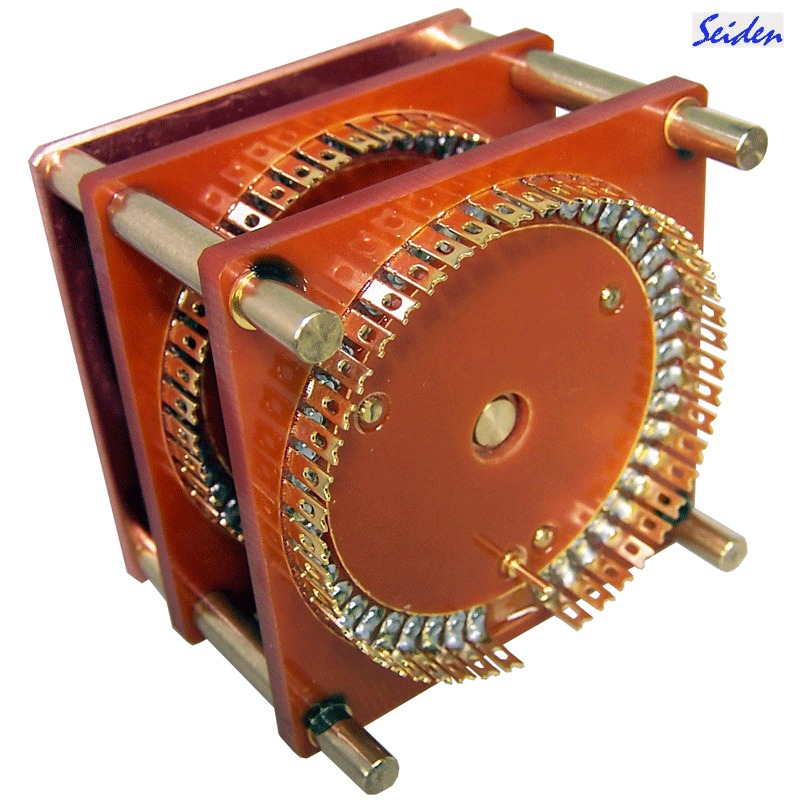

Seiden make the best switches in the world in our opinion, we now have the audio grade open frame 2 pole 46 way shorting (make before break) switch. Amazing quality, superb turning action. Turning torc can be adjusted. Can be used as a switch for a stereo shunt stepped attenuator, mono ladder type stepped or a switch to control a stereo TVC. Silver contacts, gold plated tags, from plate solid copper. body size 62mm (height) x 62mm (width) x 62mm (depth).
- Voltage: 200V dc (under 1A)
- Current: 5A (under 10V)
- Withstand voltage 500V dc (1 min)
- Contact resistance: 5 micro Ohm
- Rotary Torque: 0.5 - 1.5kg
- Operating temperature: -20 degree to +70 degree
- Di-electric resistance: 1000MOhm
- Durability: over 50000 times (no loads)
PRICE (1 off)
£227.73+vat+p&p
