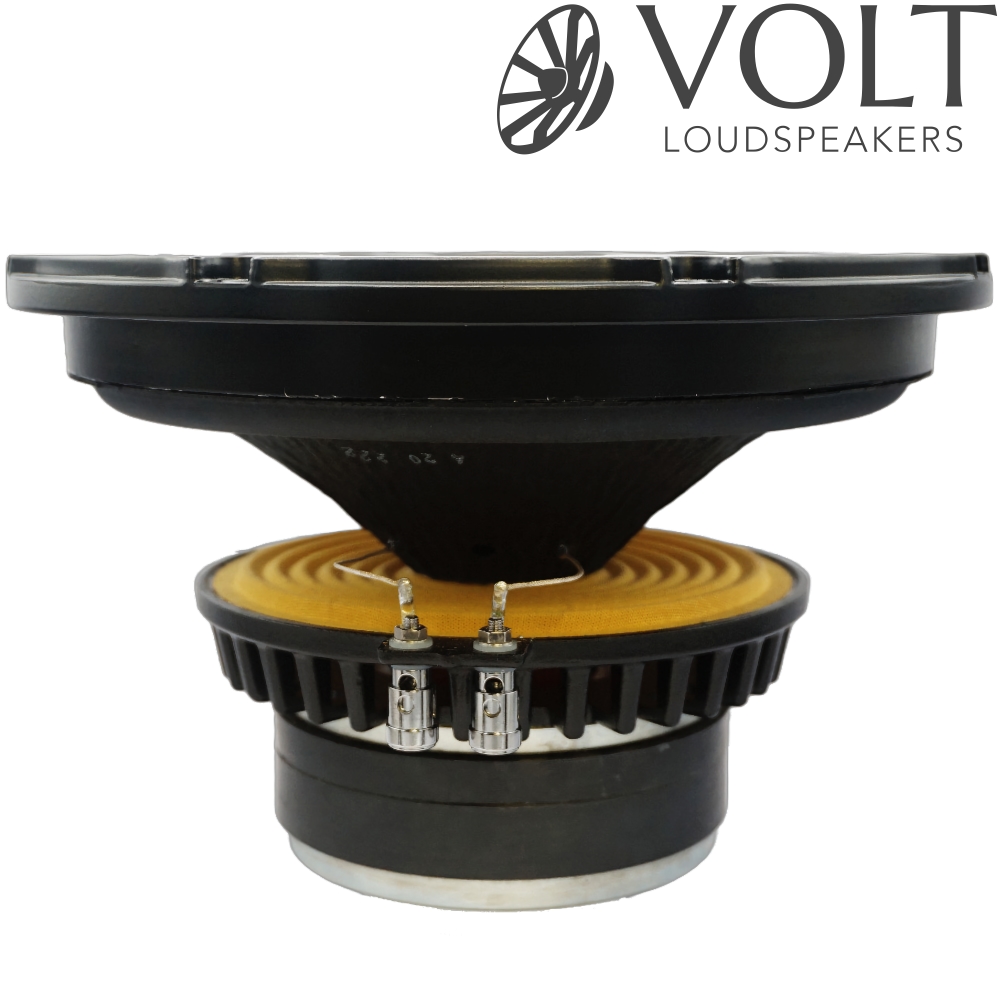

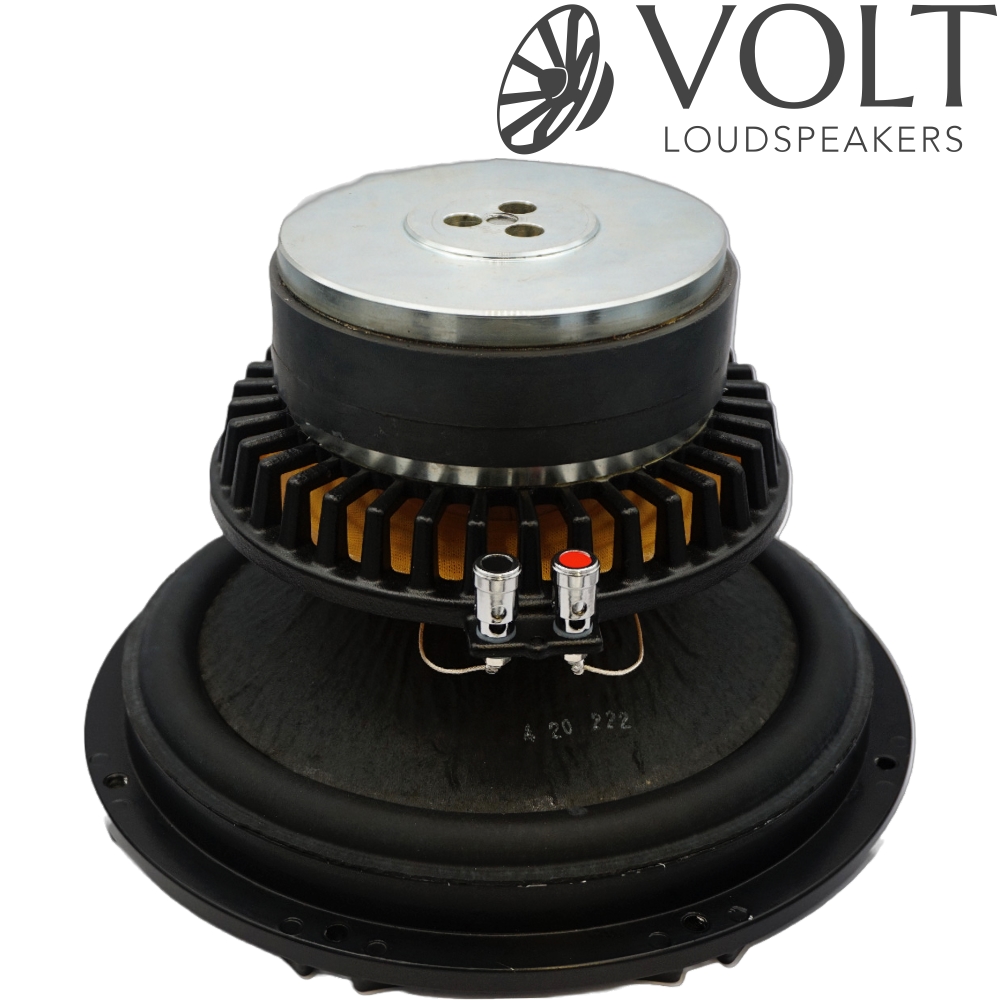

Volt Loudspeakers RV2550 10" Radial Bass Driver, 8 Ohms
The RV2550 has a symmetrical field magnet with extended centre pole for absolute linearity and transient control on high power peak inputs.
The RV2550 features three cooling systems:- in addition to a vented magnet it uses the more compact 10" Radial chassis, which acts as a giant heatsink, plus a multi-finned magnet intercooler. This keeps voice coil and magnet temperatures exceptionally low resulting in superb reliability, 3dB less power compression and tight, clean bass even after prolonged operation at maximum power.
It has double stacked ceramic magnet assembly to allow for exceptional peak to peak travel along with an increased winding width 2 layer voice coil. The RV2550 features a carbon fibre infused paper cone and low damping NBR rubber surround.
Specifications:
- Model Number: RV2550
- Nominal Diameter (mm): 250 mm
- Power Rating: 250 Watt (AES)
- Frequency Range: 20 - 500Hz
- Nominal Impedance: 8 ohms
- Voice Coil Diameter: 50 mm
- Voice Coil Height: 30 mm
- Voice Coil Layers: 2
- Magnet Gap Height: 8 mm
- Linear Excursion (XMax): ±12 mm
- Maximum Excursion: 36 mm
- Volume Displacement: 2.5 Litres
- Connection: Metal Push Terminals
- Chassis: High Pressure Diecast Aluminium
Coming October 2024
PRICE (1 off)
£330.00 +vat +p&p
