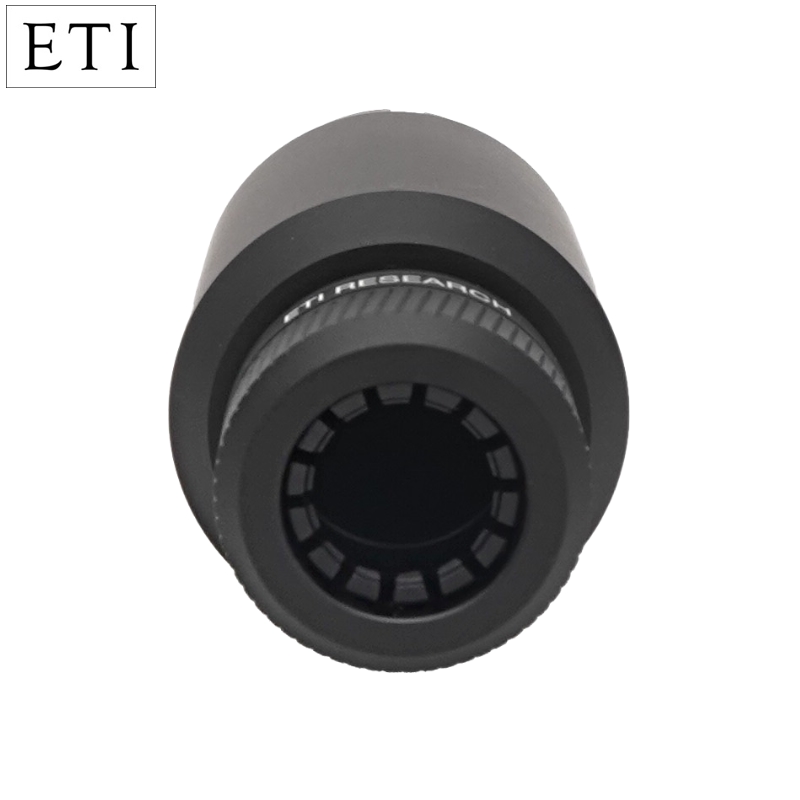

ETI Research Legato IEC C15 Connector, Gold-plated
Click to Zoom
ETI Research has developed a new range of AC connectors. The Legato IEC connector is a high-quality power plug, beautifully engineered with an intelligent selection of materials and construction. Made with 1100 series copper that offers a very uniform fine grain structure, with an IACS rating of 102%. Without adverse constraints that brass or other alloys give, you can be assured that the Legato series will be perfect for your AC cables. Designed to protect from EMI/RF it is also designed to be rugged and hold your cable securely. Flawlessly plated, gold plated and rhodium plated version is available.
Specifications:
- Housing is machined from 6061 Aluminium.
- Polymer inserts provide protection from any loose wires touching the housing.
- It can take cables up to 20mm in diameter.
- Twin thread holes for optional strain relief.
- Screw Cap machined from 6061 Aluminium.
- Each contact can receive a conductor up to 5mm in diameter.
- dimensions: 100m (length) x 42mm (diameter)
PRICE (1 off)
£177.40 +vat +p&p
