Viborg VF501R IEC C15 Connector Pure Copper, Rhodium-plated
Click to Zoom
This is the gold-plated version of Viborg's VF501 straight IEC C15 plug series. All pins and contacts are made from pure copper, then OFC copper-plated, then silver-plated and finally Rhodium-plated.
Specifications:
- Conductor: Pure copper, then OFC copper-plated, then silver-plated and finally Rhodium-plated.
- Body. Black nylon / fibreglass
- Body dimensions: 49mm length x 33mm diameter
- Overall length: 72mm
- Wire connections via pozidrive screw.
- Maximum wire diameter into each pin: 8mm
- Maximum cable diameter: 19mm
- Rating: 15A 125Vac and 10A/250Vac
PRICE (1 off)
£16.20 +vat +p&p

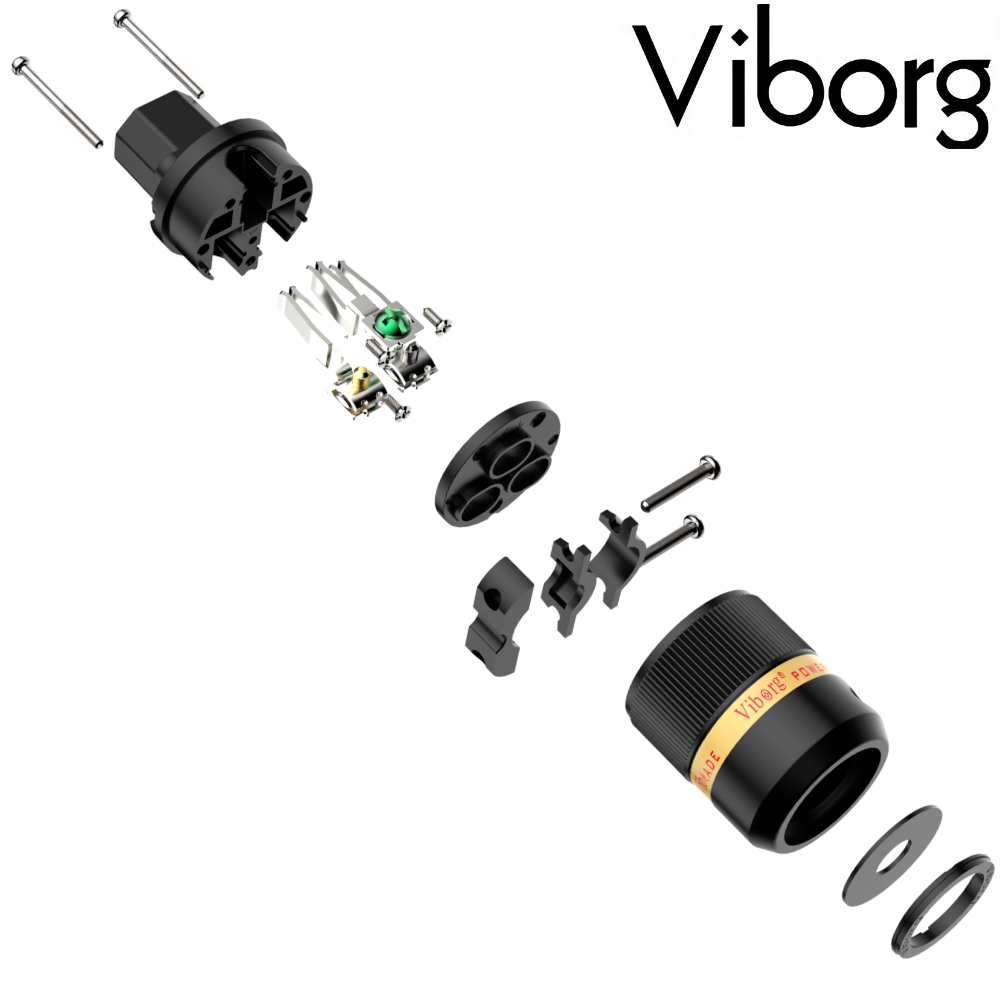

Big Picture
