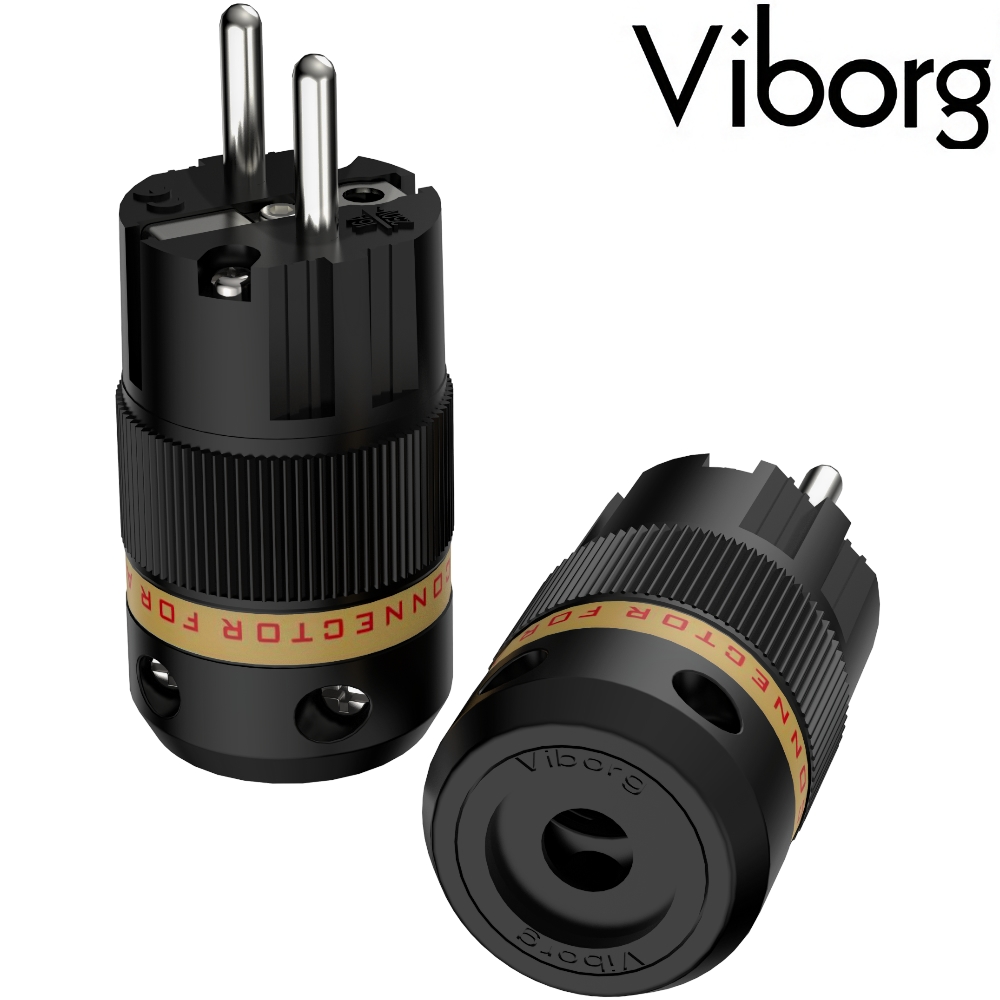

Viborg VE501S SCHUKO AC Connector Pure Copper, Silver-plated
Click to Zoom

This is the silver-plated version of Viborg's VE501 series of straight Schuko plugs. All pins and contacts are made from pure copper, OFC copper-plated and then silver-plated.
Specifications:

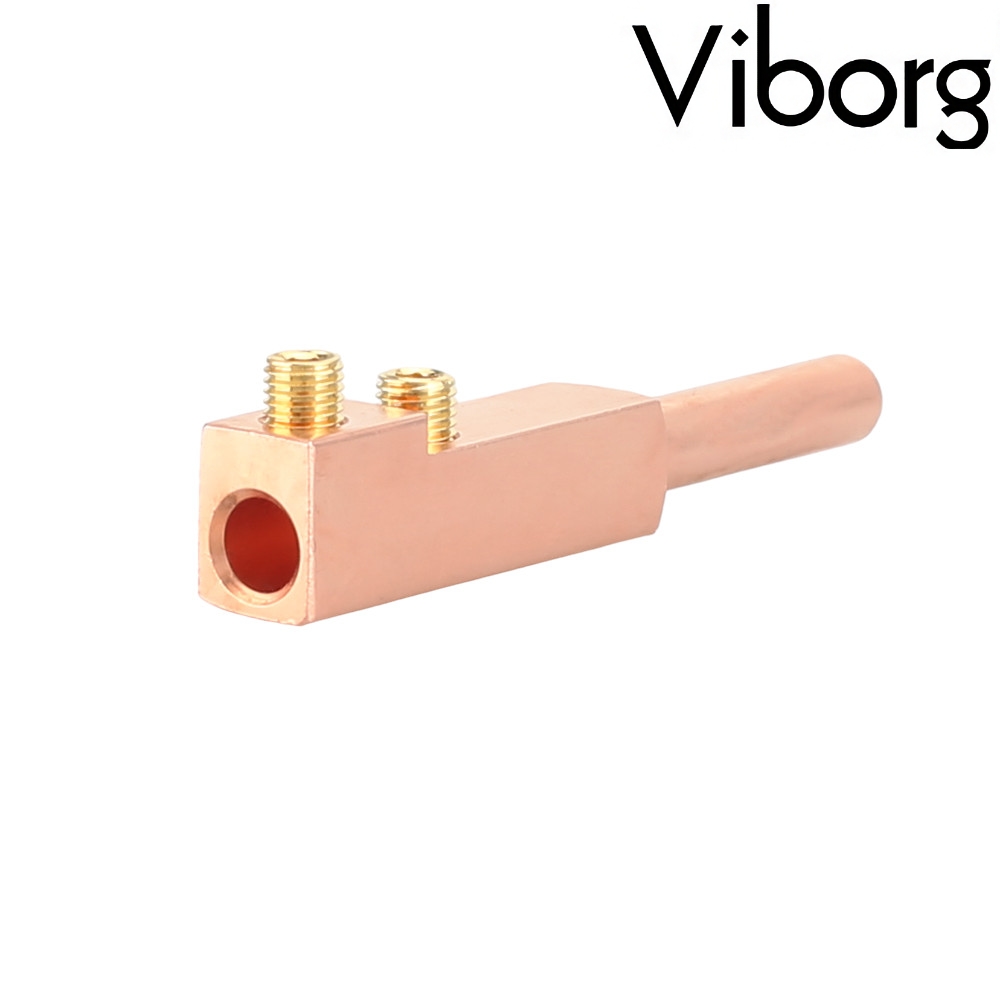

- Conductor: Pure copper, OFC copper plated, then silver plated
- Body. Black nylon / fibreglass
- Body dimensions: 64mm length x 33mm diameter
- Overall length: 83.6mm
- Wire connections via hex screws.
- Can receive wire up to 4.5mm in diameter
- Maximum cable diameter: 19mm
- Rating: 16A 250Vac
PRICE (1 off)
£30.49 +vat +p&p
Big Picture

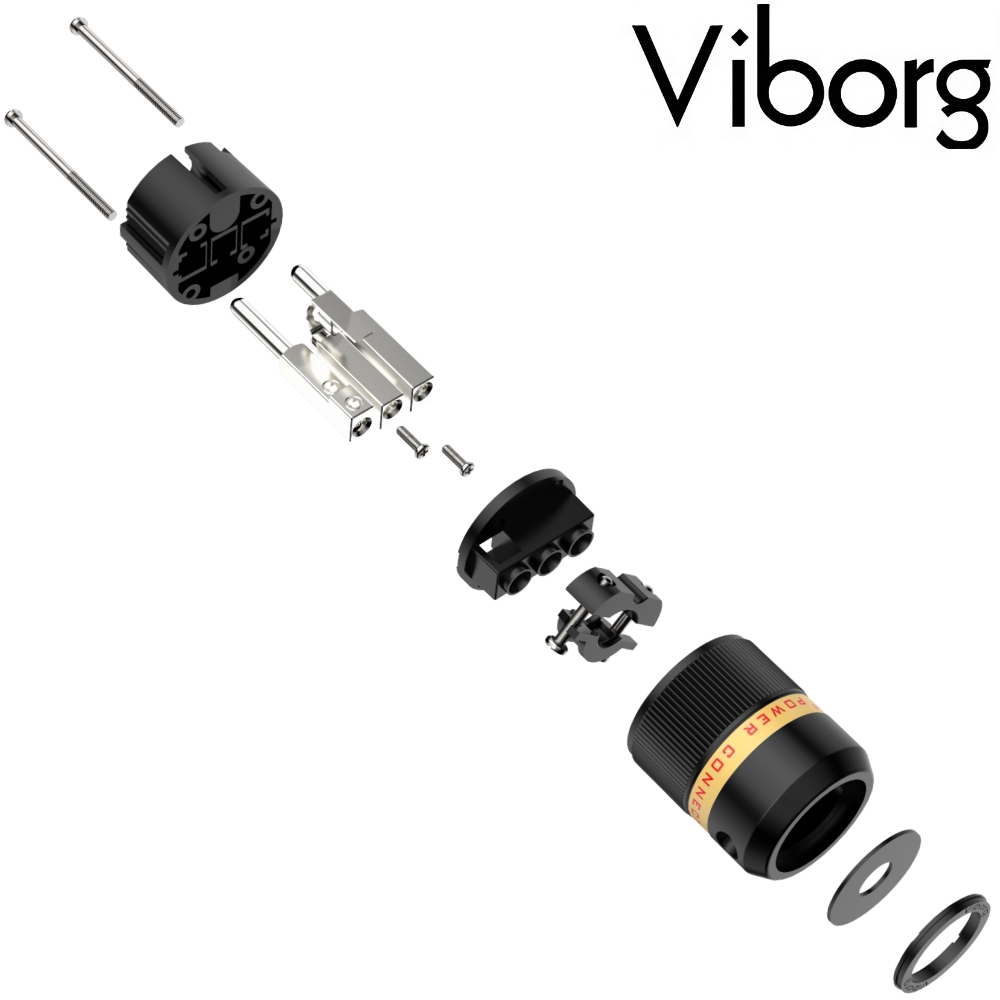

Exploded view107.74 KB

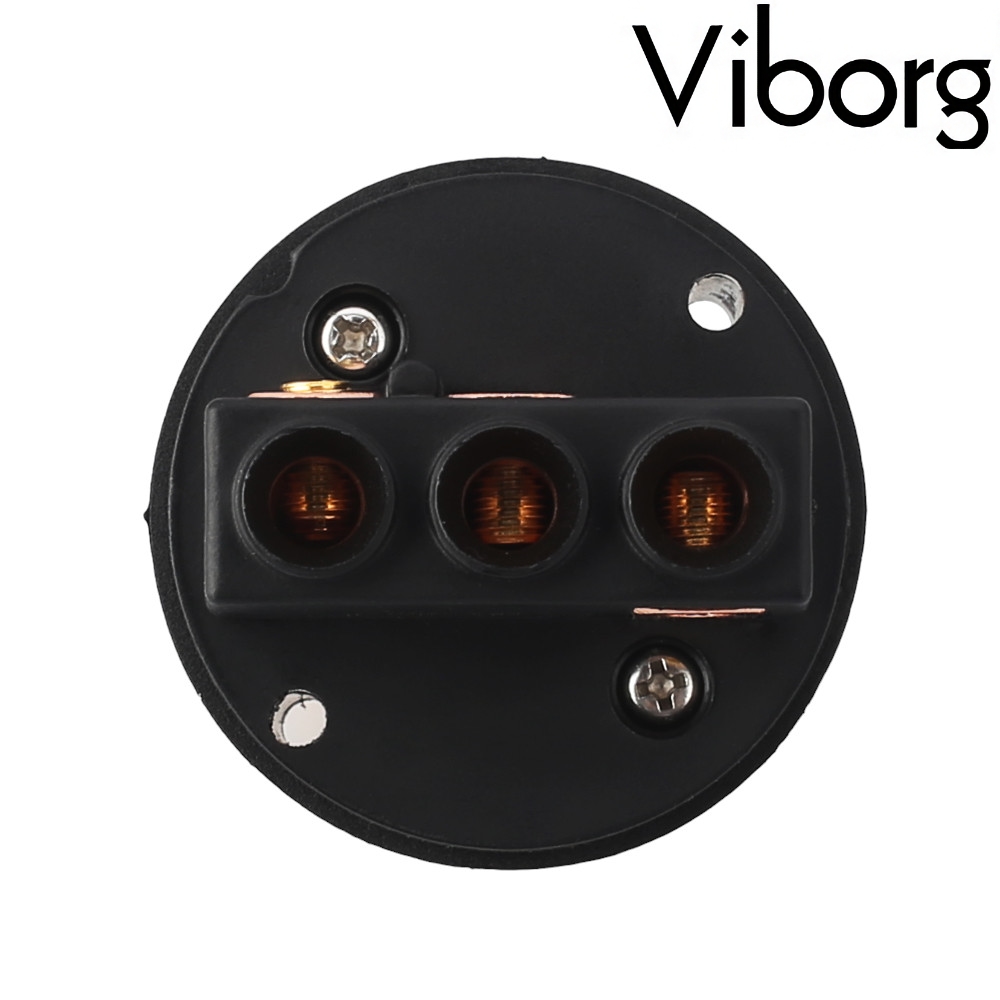

Rear view of the VE501119.24 KB
