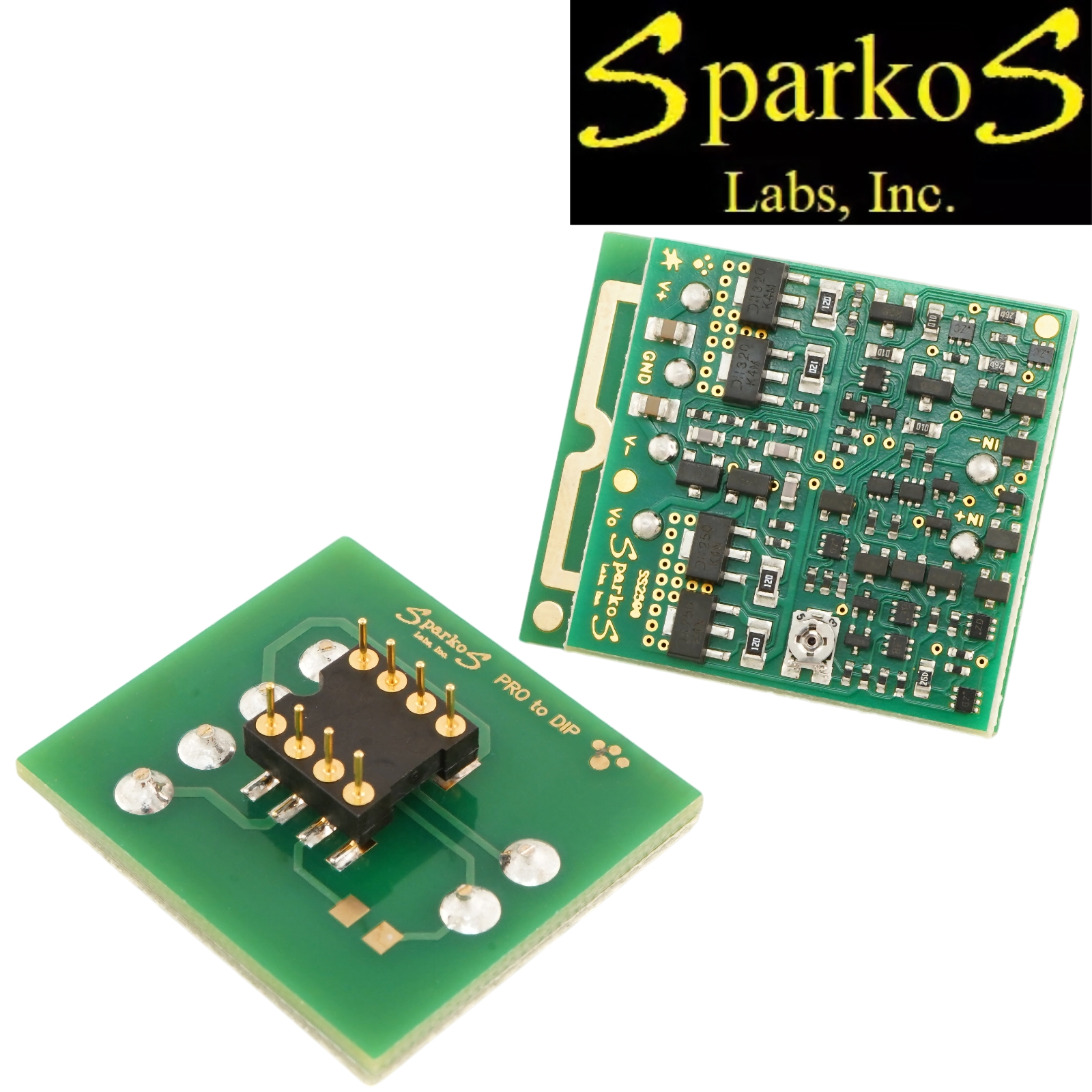

Sparkos Labs SS2590 Single Pro Discrete Op Amp
The SS2590 discrete op amp is designed to be the ultimate op amp for use in studio and pro audio applications. This device comes in a PRO 6 pin package.
The SS2590 PRO discrete op amp was designed to be as sonically transparent as possible. The design philosophy is "a piece of wire with gain" to give the most accurate musical reproduction and recording that is possible. What you hear is what you record, and every effort has been made to preserve the artists tone, timbre, and timing. These devices can replace any 6 pin, 1 inch square type of op amp that are integral to many Mic Amps, Lunchboxes, compressors, EQ's and Mixers that are found in most recording consoles.
Features:
- 165 dB Open Loop Gain to 100 Hz
- Two Pole Compensation
- 10MHz Unity Gain Bandwidth
- Class A Output Current Of +/- 32mA
- Maximum Output Current Of +/- 250mA
- 1.5nV√Hz noise in a 20KHz bandwidth
- Less than 1mV Offset
- On-Board Supply Decoupling Caps
- Able to drive 75 ohm loads at full power
- +/-9V to +/-24V supply voltage range
- All BJT design with input bias current cancellation
- Unity gain stable
- Fully Discrete Design
- PRO op amp package
Compatible with:
- Automated Processes API2520, API2525
- Lunch Box Mic Preamps
- Jensen and John Hardy 990 series
- Sound Skulptor SK series
- Purple Audio KDJ series
- Five Fish Studio Discrete series
- Avedis Audio 1122
- Seventh Circle Audio SC series
- Yamaha NE series
- Rogue 5 Series Discrete Op Amp
- Whistle Rock Audio series
- Warm Audio Discrete Series
Dimensions: 32mm (length) x 29mm (width) x 15mm (height)

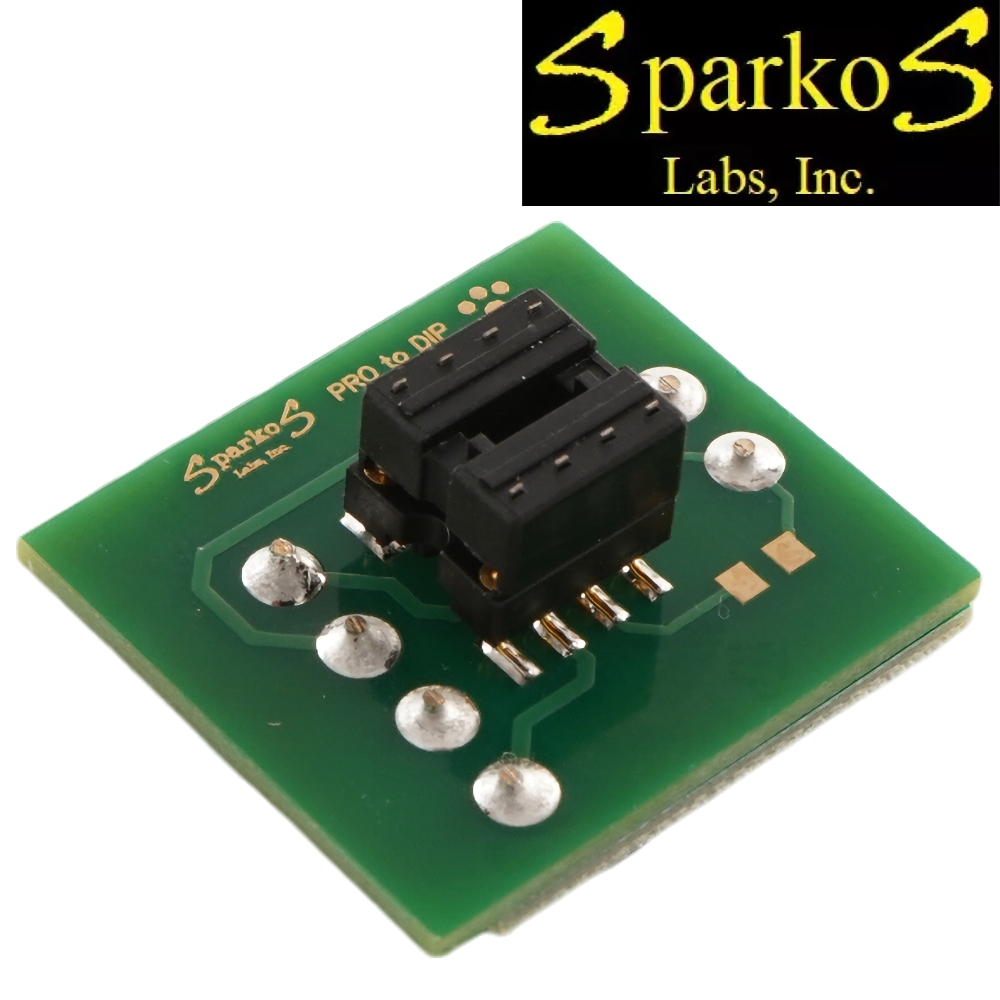

Also available in a Dual version using the PRO to DUAL adaptor
PRICE (1 off)
£64.00 +vat +p&p
