Cardas CGMS 9RM Copper Spade, Rhodium over Silver Plated
Click to Zoom

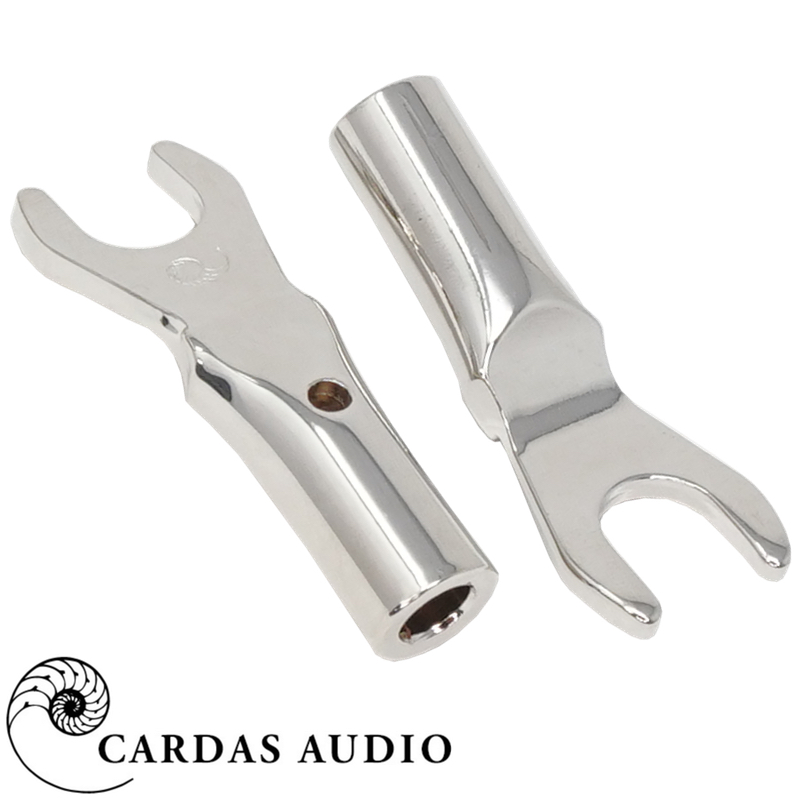

The larger opening version of the CCMS spades. The 1/4 inch spades are machined from billet copper and plated with a rhodium flash over a silver plate.
They have an overall length of 45mm. The outer width of the spade portion in 16.5mm, the inner width of the spade opening is 9mm. The cable entry has a diameter of 5.5mm. With a 2.75mm solder hole on the top.
Cardas CCMS spades have been phased out in favour of the more versatile CGMS spades.
The CGMS R M is the equivalent of the CCMS R 1.
PRICE (1 off)
£32.00 +vat +p&p
Big Picture
Large picture187.31 KB
Drawing
Technical drawing35.28 KB
