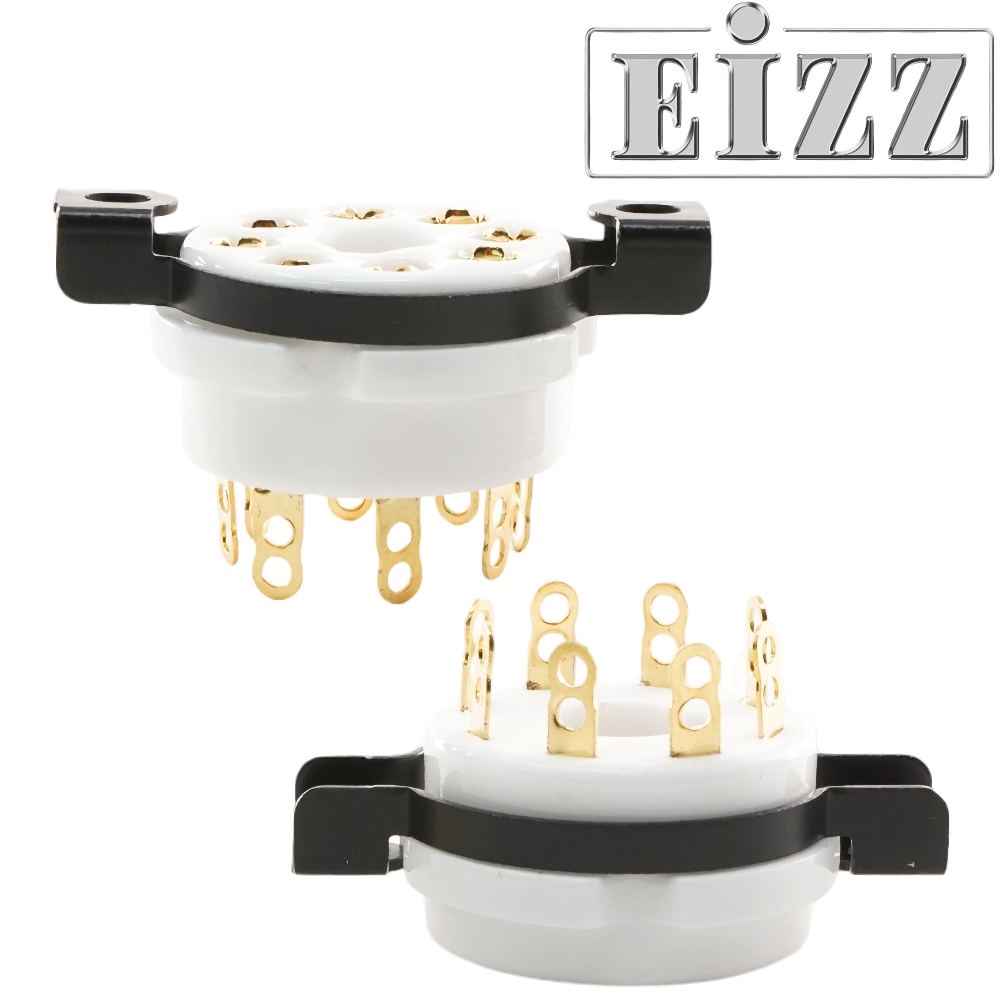

EIZZ EZ-1108C Octal, 8 Pin Chassis Mount Valve Base, Ceramic, Gold Plated, Ring Fixing, PCB tags
Click to Zoom
The EZ-1108C is an 8-pin octal, polished white ceramic-bodied valve base with tag connections from EIZZ. The pins are gold-plated phosphor bronze.. It can be fitted above or below the chassis plate.
Specifications:
- Gold-plated phosphor bronze contacts.
- Polished white ceramic body.
- Overall body dimensions. 30mm diameter x 23mm height (including tags).
- Detachable fixing ring dimensions: 44mm (widest) x 29mm (narrowest).
- Centres of M3 fixing holes are 35mm apart.
- The chassis cut is 27mm in diameter.
- Wire connections by soldering
- Suitable for EL34, 6550, 6SN7 etc...
PRICE (1 off)
£21.54 +vat +p&p
