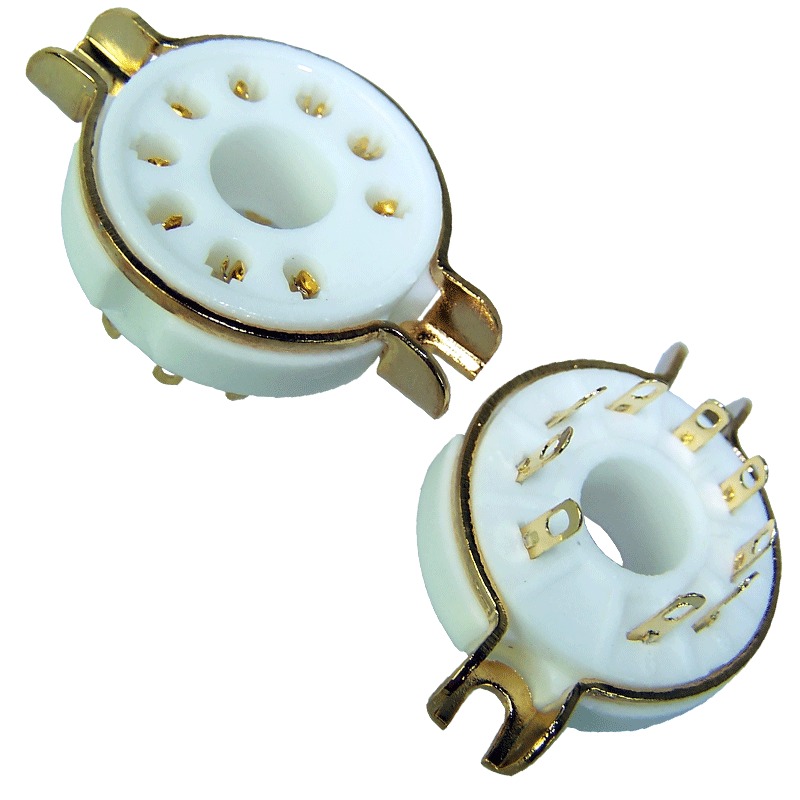

SK9DC1G: Ceramic Chassis mount, B9D, Magnoval valve base, 9 pin, gold plated
Click to Zoom
A less common type of valve base, magnoval bases fit valves such as the PL519, EL504, EL509, EL502... A larger base than the B9A, possessing similar overall dimensions to the common octal. Glazed white ceramic body, with a separate nickel-plated bracket, so the valve base can be mounted from above or below the chassis. We also stock the nickel pin version.
Chassis cutout 27mm diameter
Fixing screw holes centres 36mm apart
PRICE (1 off)
£3.75 +vat +p&p
