AECO AMI-1060S XLR plugs, Tellurium Copper Silver-plated

Click to Zoom

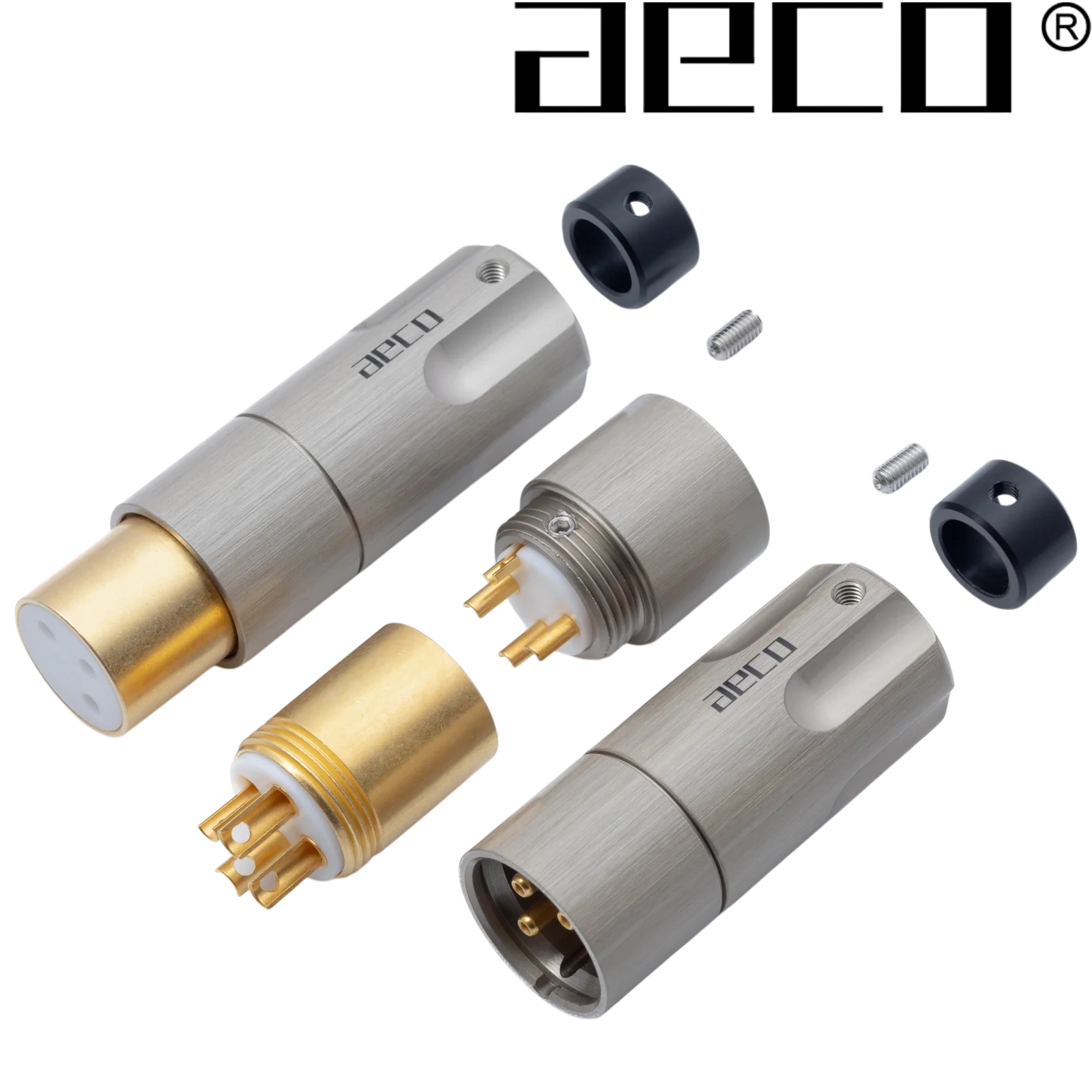

AECO AMI-1060S XLR plugs, Tellurium Copper Silver-plated

The silver-plated Tellurium copper silver-plated XLR plugs are sold in two packs. One female and one male, both unmarked.

  • High-purity copper(over 99%) made.
  • "One Point Contact” structure.
  • PTFE insulation.
  • It can receive cables of an overall diameter of 12.5mm.
  • The body and the shell are locked by screwing.
  • The maximum cable diameter with the sleeve is 8.5mm, and 12.5mm without
  • The design of the Female end does not come with a button. However, it is suitable with other standard XLR products which have a button.
  • The cable can be locked in place with 2 grub screws.

Specification

Material:

  • Contact Pin: MALE- Tellurium Copper(C14500 / copper contains over 99%)
  • Contact Pin: FEMALE - Tellurium Copper(C14500 / copper contains over 99%)
  • Grounding:Pin: MALE - Brass alloy (C3604)
  • Grounding:Pin: FEMALE - Tellurium copper (C14500 / copper contains over 99%).
  • Insulator: PTFE
  • Body: Brass alloy (C3604).
  • Shell: Brass alloy (C3604).
  • Sleeve: POM .
  • Screw: Iron.

Finish:

  • Contact pin: 120um Silver plating (no nickel base).
  • Shell ground pin: 120um Silver plating (no nickel base).
  • Male Body - Satin Nickel + Topcoat.
  • Female Body - 120um Silver plating (no nickel base).
  • Insulator: None.
  • Shell: Satin Nickel + Topcoat.
  • Plastic Steel: None.
  • Screw: Nickel plating.

Electrical Characteristics:

  • Contact resistance < 1.0 mOhm (It was tested by Ami-1060)

Dimension:

  • Biggest outer diameter: 18.9mm
  • Total Length: MALE - 46mm, FEMALE - 59.5mm
  • Can receive cable of up to 8.5mm in diameter with the sleeve
  • Can receive cable of up to 10.5mm in diameter without the sleeve

PRICE (pair)
£53.85 +vat +p&p
