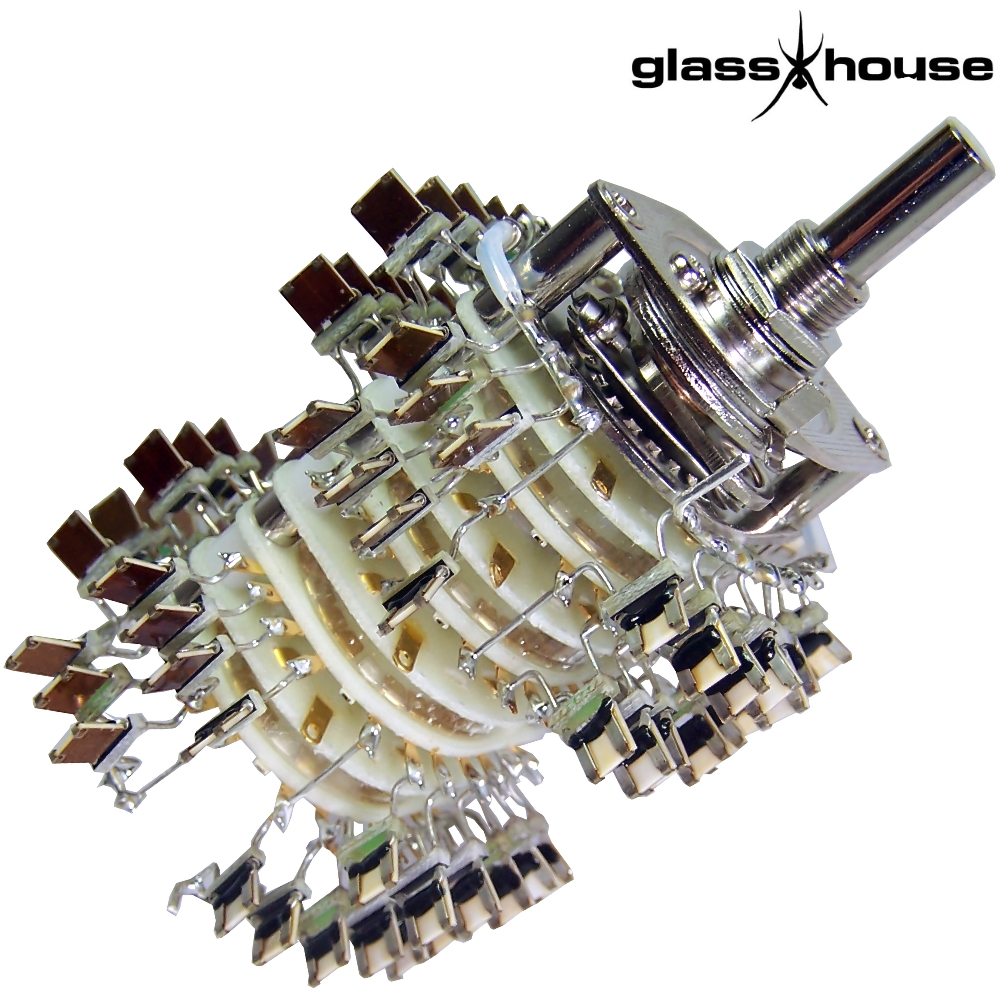

Glasshouse / Seiden 4-pole 23-way switch / Stereo Ladder Stepped Attenuator
![Glasshouse / Seiden 4-pole 23-way switch / Stereo Ladder Stepped Attenuator](/sites/default/files/2024-07/glasshouse-charcroft-seiden-ladder-1000.jpg)
Japanese-made 32NEG range switches from Seiden are our most popular attenuator switches. They have a smooth turning action, silver with gold-plate contacts, and a clear plastic enclosure that protects all contacts from dust. With 23 positions, each step is a 2dB step. You have an option of 15 different resistor types to choose from.

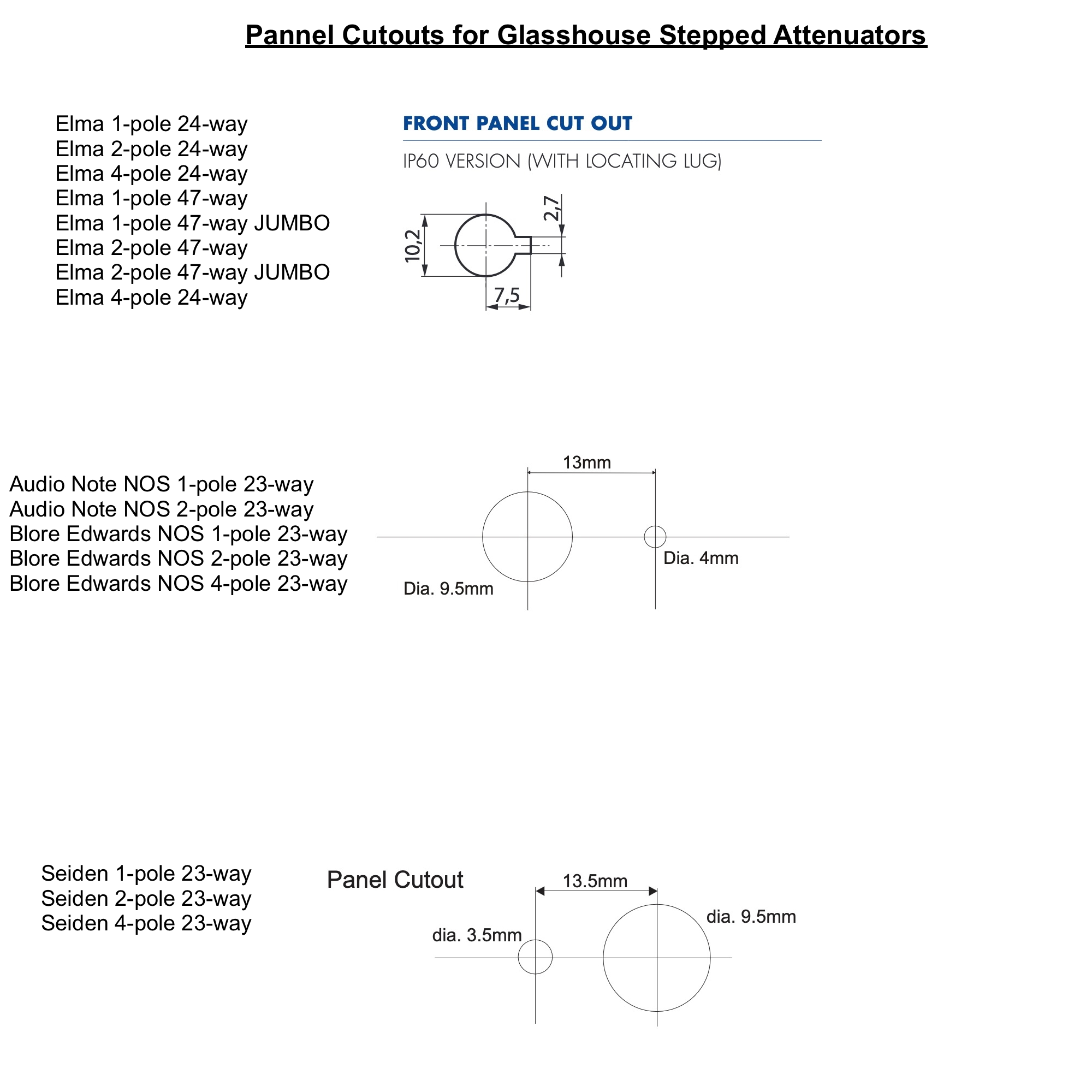

Dimensions
Dimensions
Shaft: 6mm diameter x 13mm length
Bush: 9.5mm diameter x 7mm length
Body, including resistors fitted (internal part): 45mm x 50mm (oval shaped) x 62mm height
PRICE (1 off) 10K, 20K, 25K, 50K, 100K, 250K
starting at £142.22+vat+p&p
Due to the range of values for the Audio Note resistors, we can only supply the 50K, 100K, and 250K options. For the Takman resistors, we can only supply the 25K and 50K versions of the Carbon Film and the 20K, 25K, and 50K versions of the Metal Film.
Available as a kit or fully built. The build price is an additional £80.
For the 0.25W resistor kit versions, we supplied
- Blore Edwards 4-pole 23-way switch
- Selected resistor set (88 resistors)
- 0.2m x HGG 0.5mm diameter wire
- 0.25m x 0.5mm PTFE sleeving
- 1.5m x Mundorf 3.8% silver/gold solder
For the 0.5W resistor, 0.4W Charcroft resistor and 2W AMRT kit versions, we supplied
- Blore Edwards 4-pole 23-way switch
- Selected resistor set (88 resistors)
- 0.2m x HGG 1mm diameter wire
- 0.25m x 1mm PTFE sleeving
- 1.5m x Mundorf 3.8% silver/gold solder

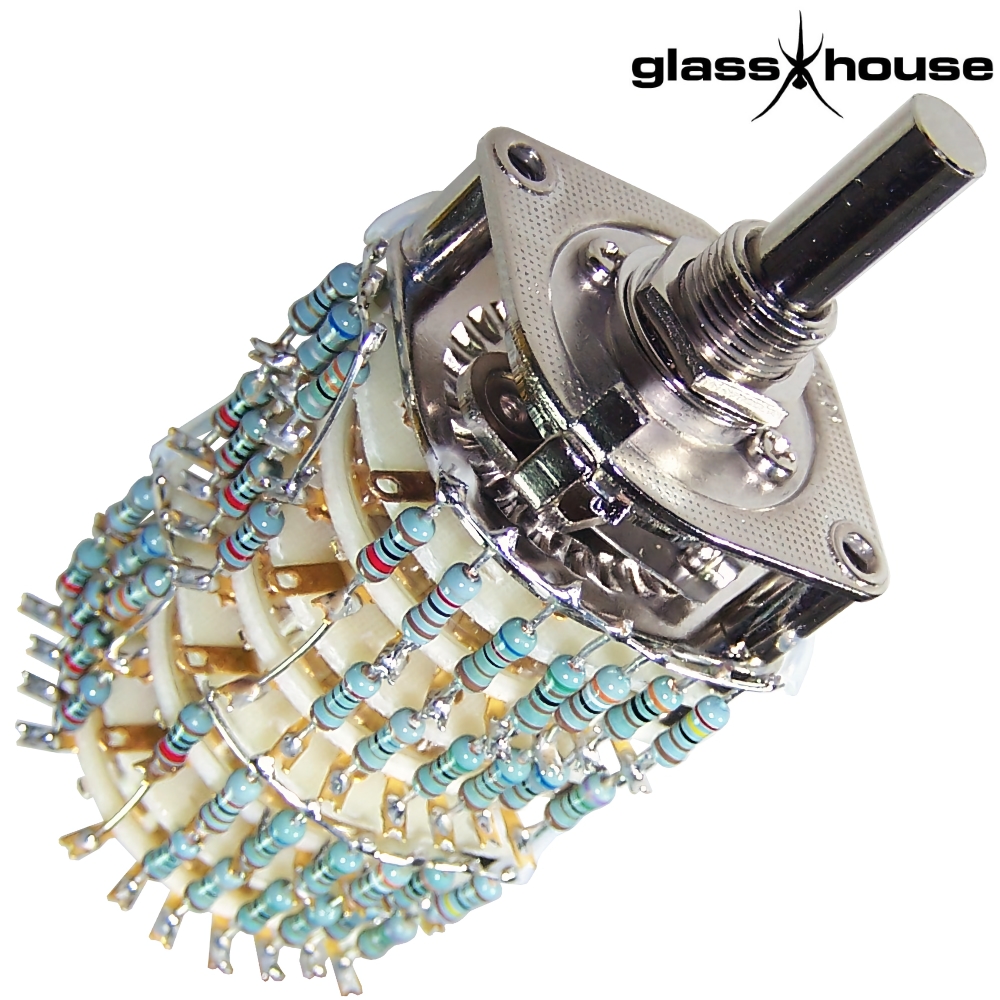

the picture shows - 0.5W Takman Metal version
