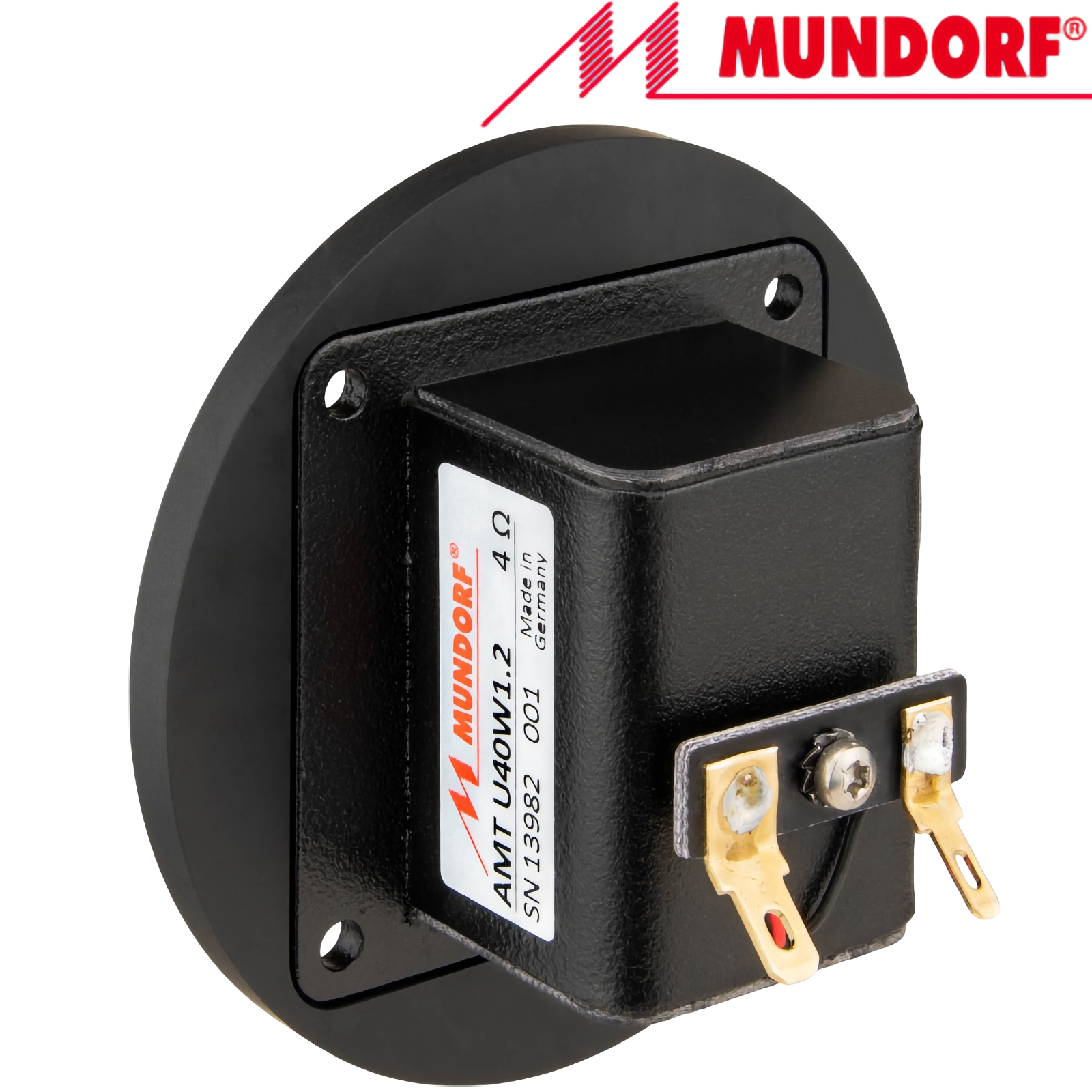

Mundorf AMTU40W1.2-C U.Series Tweeter

The AMT U40W1.2 is the smallest model in the U.Series. It is suitable for 2-way tabletop speakers as well as for 3-way floor standing speakers. Thanks to its compact design, the AMT U40W1.2 can also be effortlessly integrated into Car-HiFi systems. Small as it is, it provides all the quality features of the AMT U.Series with Mundorf diaphragm: Exceptionally low K3 / K5 distortion data, a truly powerful music performance within the entire application range and, at the same time, the fine micro-dynamics and richness of music details that distinguish all Mundorf AMT’s.

Specification:

• Nominal Impedance: 4 Ω
• DC Resistance (Rdc): 3.7 Ω
• Sensitivity (2.83 V / 1m): 92 dB
• Resonance Frequency (Fs): 3900 Hz
• Frequency Response:
  • -6 dB: 3.0 kHz - 40 kHz
  • -10 dB: 2.7 kHz - 43 kHz
• Crossover Frequency (filter 12 dB/6 dB/Oct.): 3.5 kHz / 5.0 kHz
• Nominal Frequency Range: 3.5 kHz - 40 kHz
• Power Handling:
  • Long-term: 10 W (rms)
  • Short-term: 80 W (rms)
• Max. Input Voltage:
  • Long-term: 6.3 V
  • Short-term: 17.9 V
• Effective Piston Area: 13.5 cm²
• Total Weight: 0.174 kg
• Face Plate: Optional

PRICE (1 off)
£181.74 +vat +p&p
