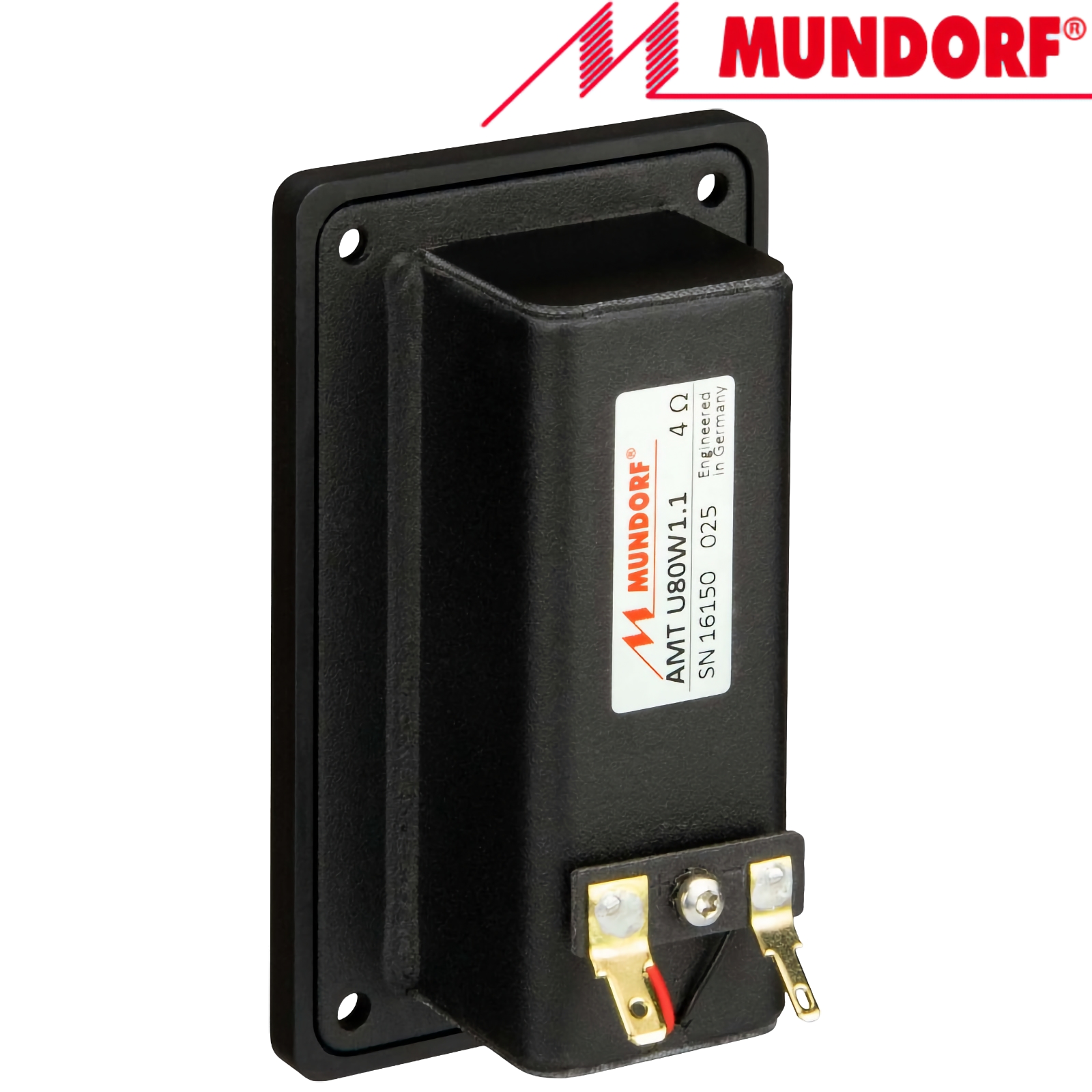

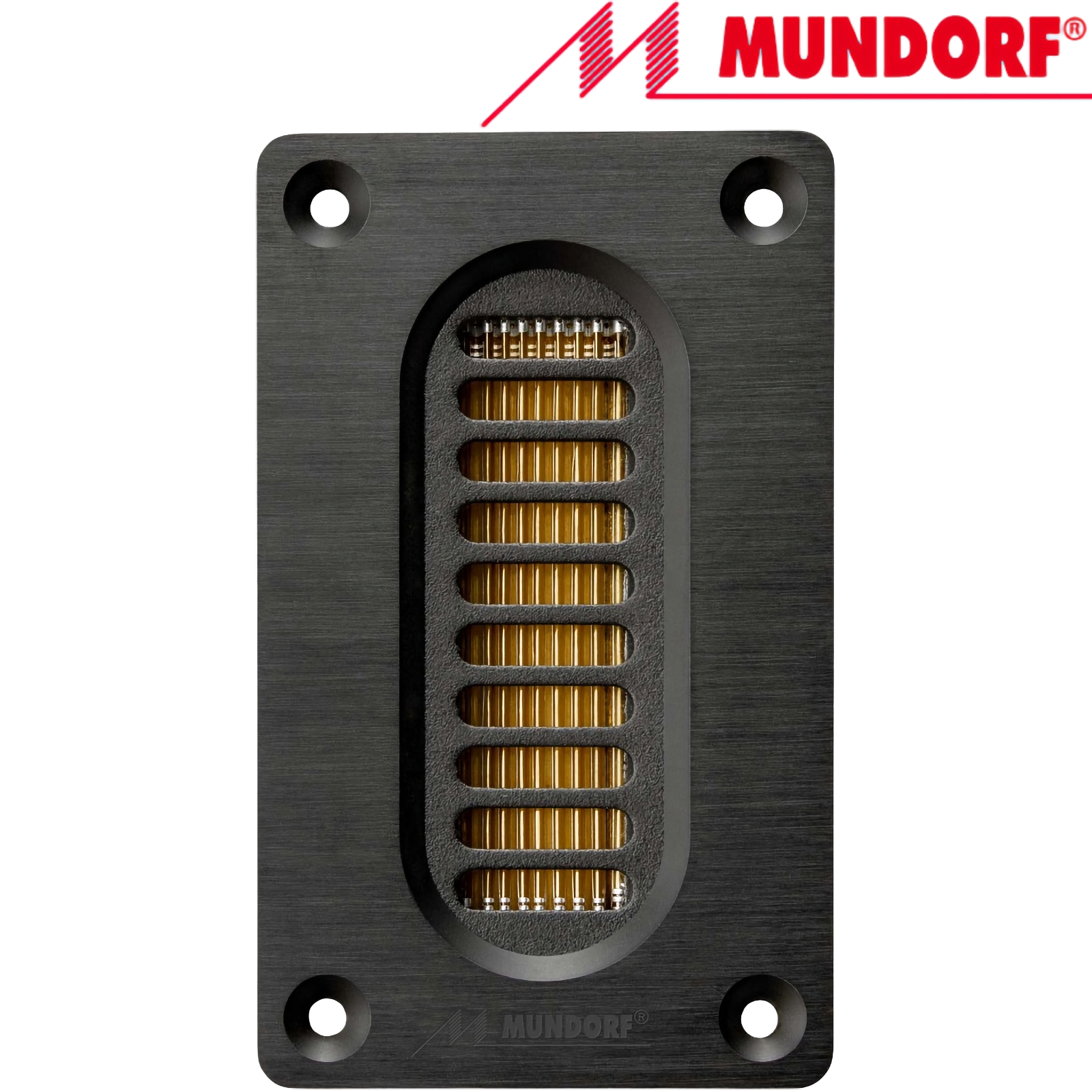

Mundorf AMTU80W1.1-R U.Series Tweeter

AMT U60W1.1 and AMT U80W1.1 could be described as the small and the large all-rounder of this product range. Both can be used in small or medium 2-way and 3-way systems. AMT U60W1.1 offers a slightly larger vertical radiation angle. So it‘s ideally suited for situations with a short listening distance. Both convince with the decisive quality features of the AMT U.Series with Mundorf diaphragm: Exceptionally low K3 / K5 distortion data, a truly powerful music performance within the entire application range and, at the same time, the fine micro-dynamics and richness of music details that distinguish all Mundorf AMT’s.

Specification:

• Nominal Impedance: 4 Ω
• DC Resistance (Rdc): 4.4 Ω
• Sensitivity (2.83 V / 1m): 94 dB
• Resonance Frequency (Fs): 2150 Hz
• Frequency Response:
  • -6 dB: 1.8 kHz - 31 kHz
  • -10 dB: 1.4 kHz - 34 kHz
• Crossover Frequency (filter 12 dB/6 dB/Oct.): 2.0 kHz / 3.0 kHz
• Nominal Frequency Range: 2.2 kHz - 31 kHz
• Power Handling:
  • Long-term: 15 W (rms)
  • Short-term: 90 W (rms)
• Max. Input Voltage:
  • Long-term: 7.7 V (rms)
  • Short-term: 19 V (rms)
• Effective Piston Area: 31.4 cm²
• Total Weight: 0.360 kg

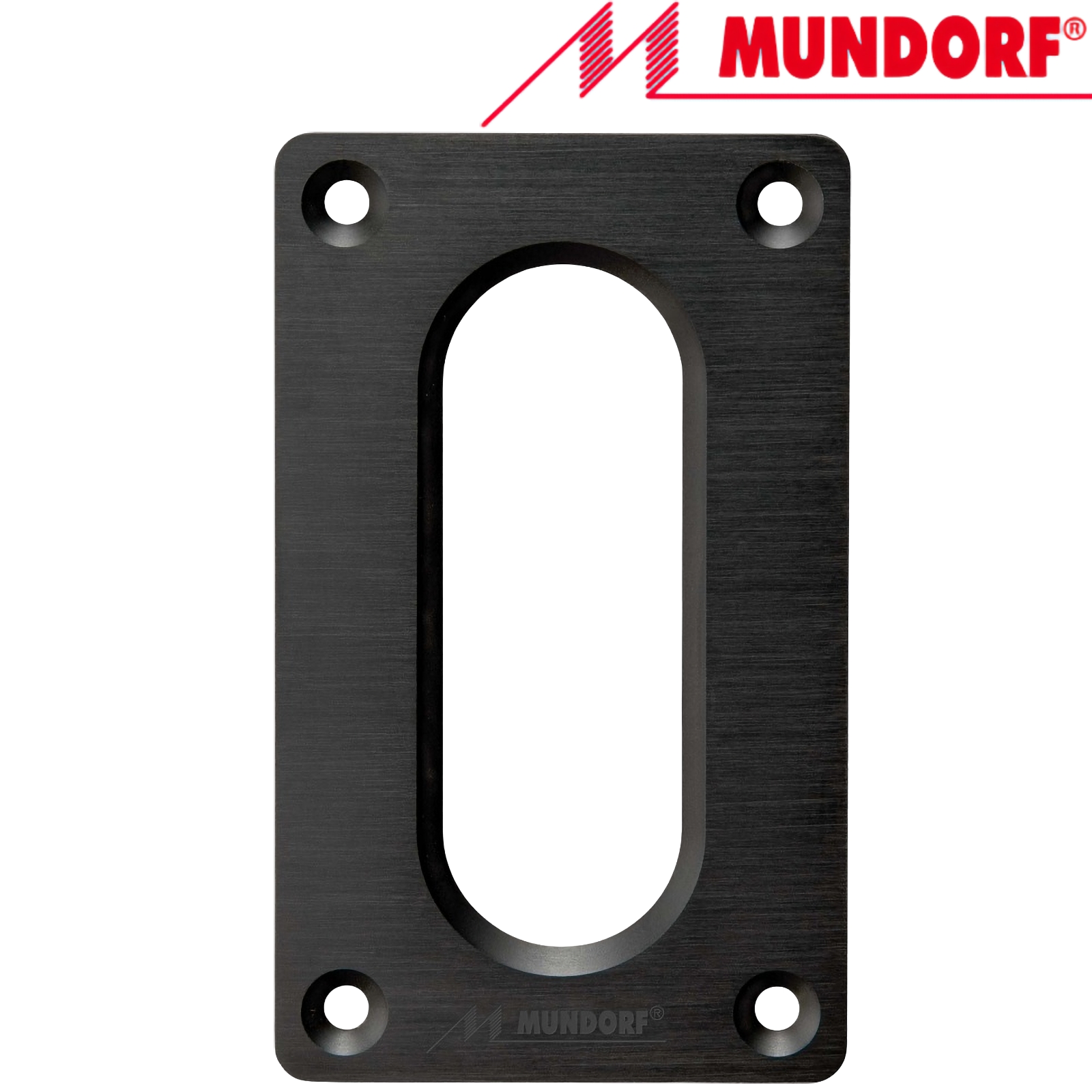

• Face Plate: Optional

PRICE (1 off)
£251.30 +vat +p&p
