Volt Loudspeakers BM1651 6.5" Bass-Midrange Driver, 8 Ohms

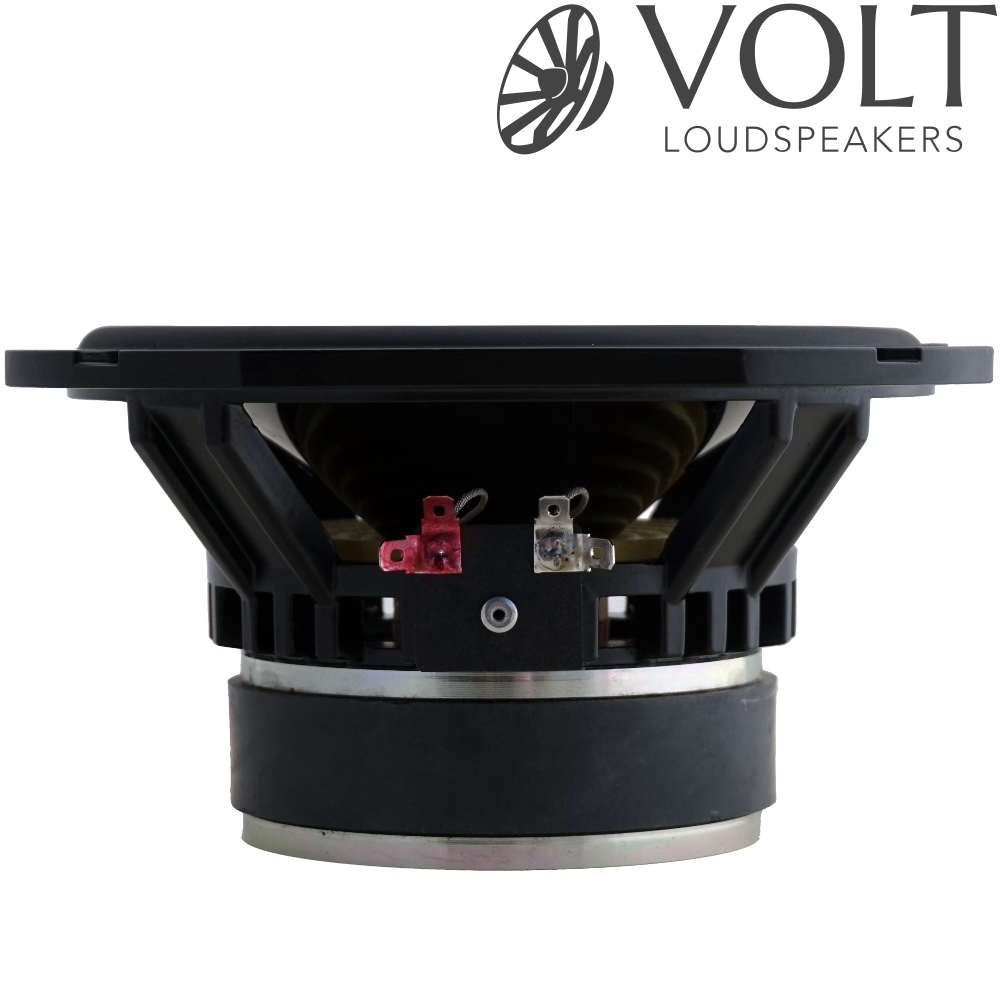

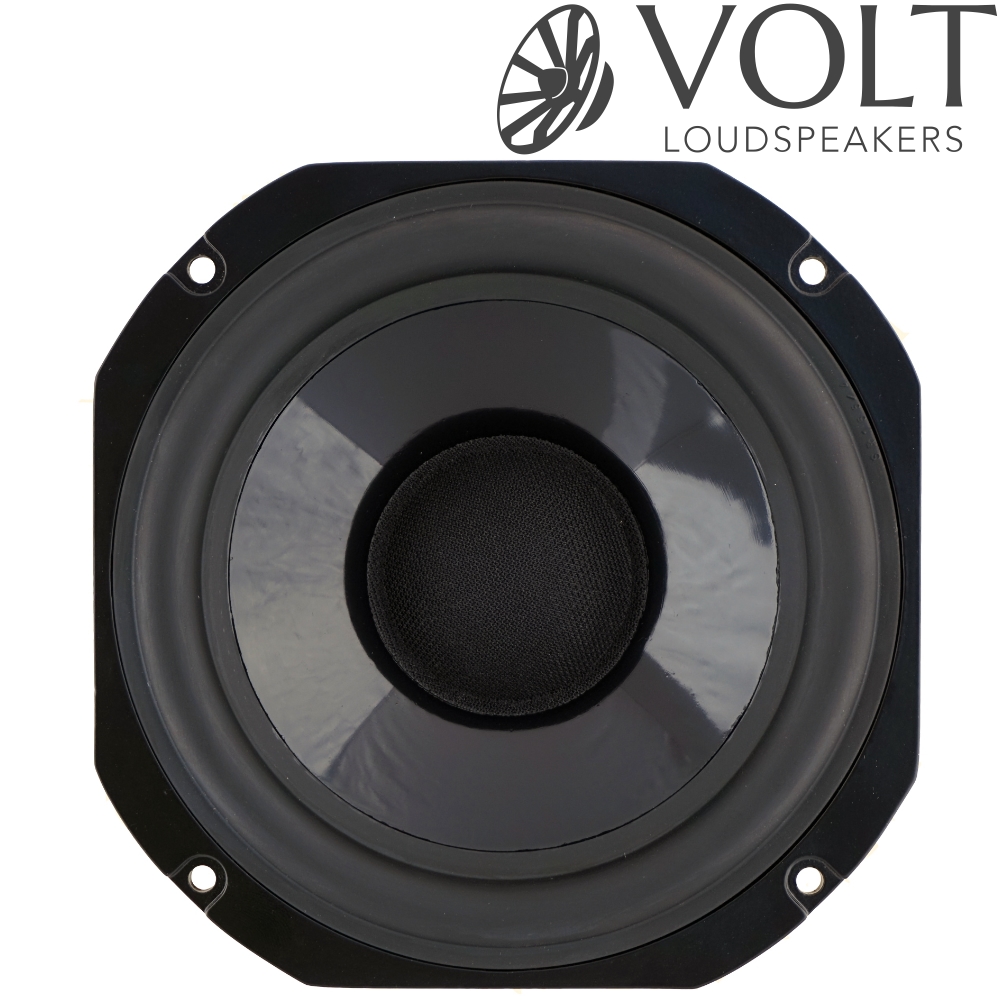

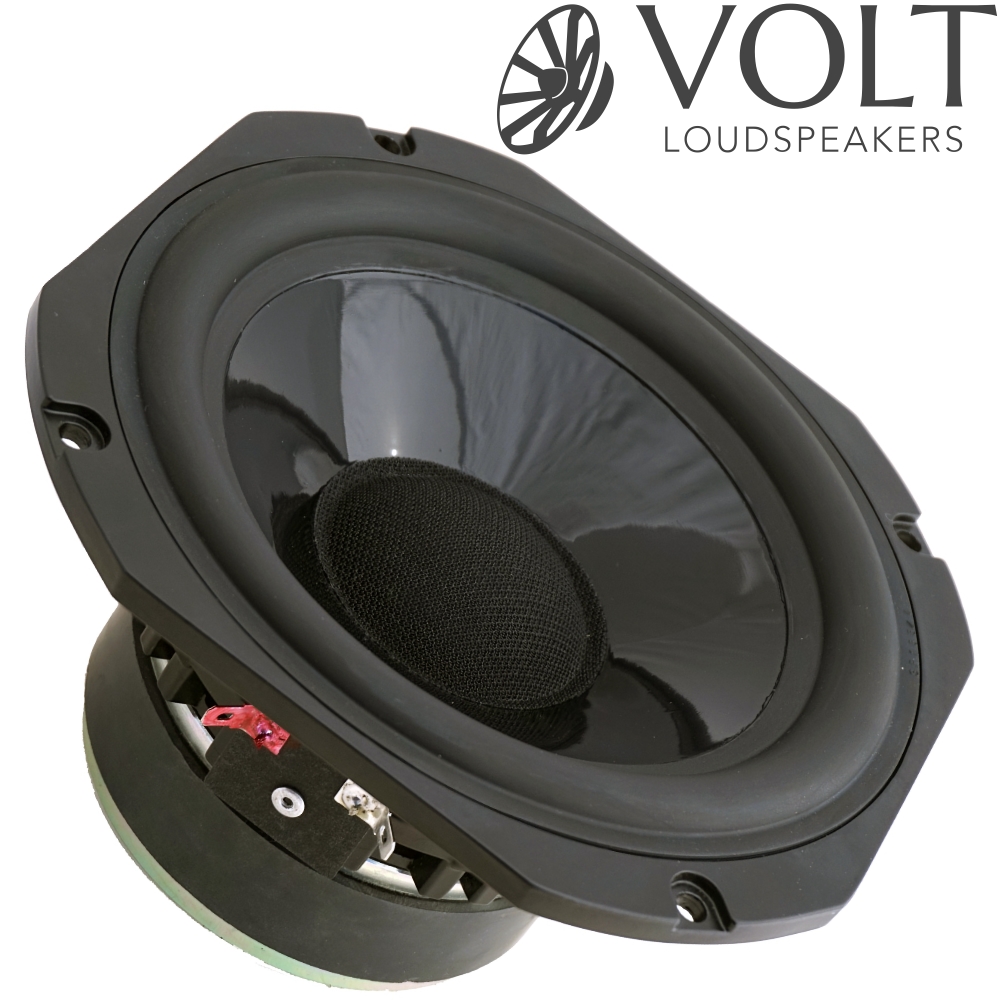

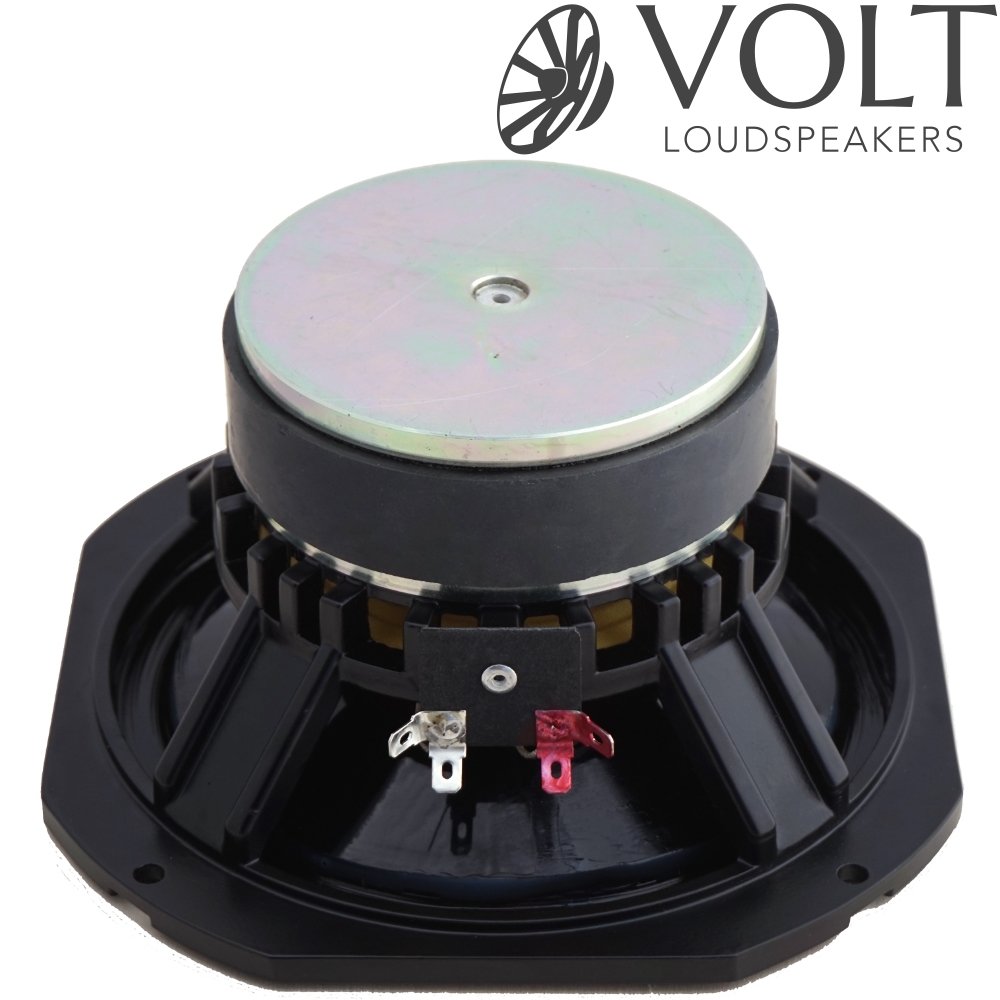

The BM165.1 (6.5") is a critically doped plastic HIPS cone drive unit, developed for bass/mid applications that require minimal colouration and low distortion over a wide frequency range. It uses a symmetrical field magnet system with an extended pole piece for large linear excursion capability, along with mirrored double rear suspensions that guarantee transient stability at high drive levels.
The Thiele-Small parameters are optimised for relatively small enclosures to give a bass performance that complements the extended midband enabling excellent 2-way systems. The diecast aluminium chassis is vented below the suspensions to increase cooling airflow to the voice coil.
Specifications:
- Model Number: BM165.1
- Nominal Diameter (mm): 165
- Power Capacity (Watt AES): 100
- Sensitivity (dB/watt/m): 88
- Frequency Range (Hz): 50-3000
- Impedance (Ohms): 8
- Voice Coil Diameter (mm): 38
- Voice Coil Material: Copper
- Suspension: Mirrored Double
- Cone Material: Coated Black HIPS
- Surround: Low Loss Rubber
- Maximum Excursion (mm): 24 (before damage)
- Magnet: Ferrite
- Magnet Assembly Weight (Kg): 1.55
- Volume Displaced (litres): 0.7
- Connection: 5mm Solder Terminals
- Chassis: Diecast Aluminium Vented

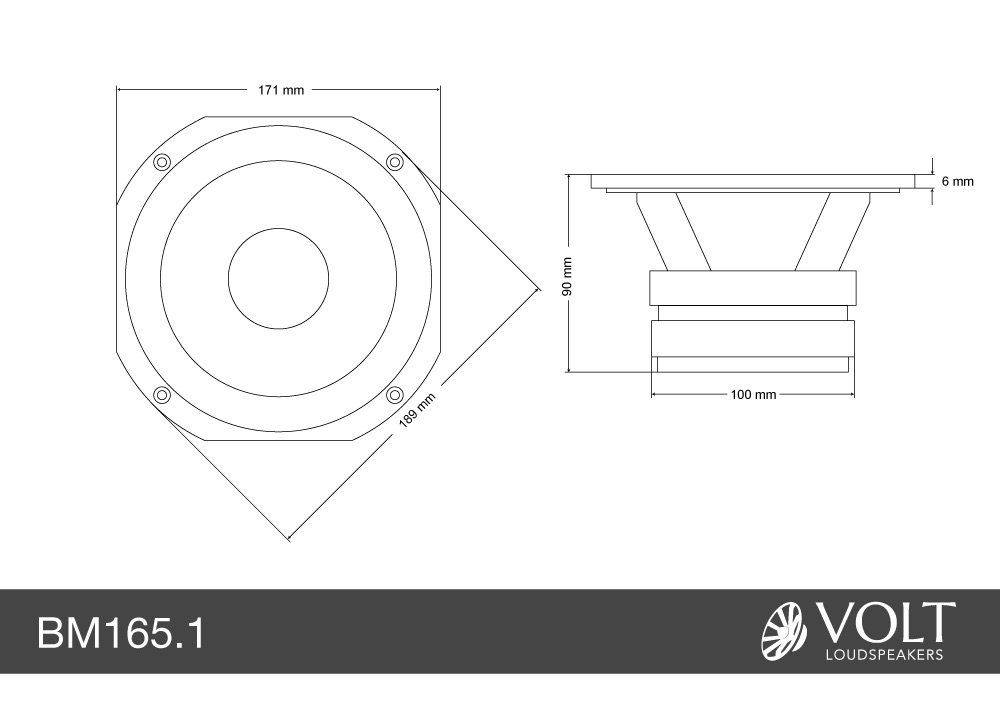

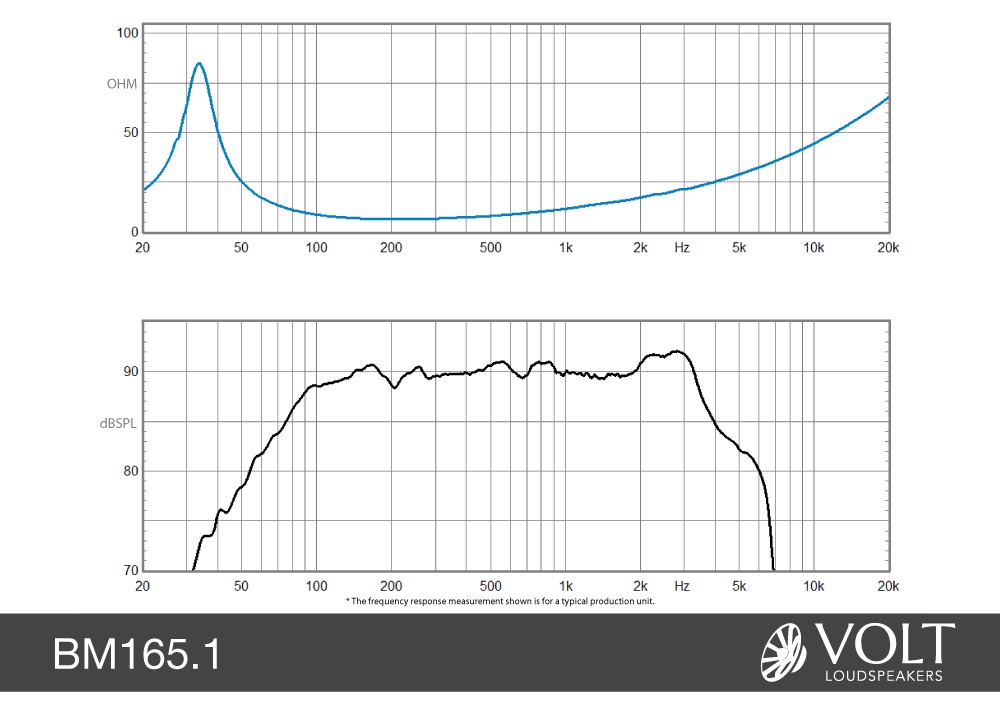

For even more information, please refer to the datasheet and graphs below.
PRICE (1 off)
£120.50 +vat +p&p
