Volt Loudspeakers BM2288 8" Bass-Midrange Driver, 8 Ohms
Click to Zoom
The BM228.8 bass unit uses a symmetrical field magnet system for large linear excursion capability. Double rear suspensions guarantee transient stability at high drive levels. The plastic cone is critically doped for minimal colouration over a wide frequency range with a smooth upper roll off. The Thiele-Small parameters are optimised for relatively small enclosures to give a bass performance that complements the extended midband enabling excellent 2-way systems.
Specifications:
- Model Number: BM228.8
- Nominal Diameter (mm): 220
- Power Capacity (Watt AES): 150
- Sensitivity (dB/watt/m): 89
- Frequency Range (Hz): 30-3000
- Impedance (Ohms): 8 or 16
- Voice Coil Diameter (mm): 38
- Voice Coil Material: Copper
- Suspension: Mirrored Double
- Cone Material: Coated Black HIPS
- Surround: Rubber
- Maximum Excursion (mm): 25 (before damage)
- Magnet Assembly Weight (Kg): 3.6
- Volume Displaced (litres): 0.8
- Connection: 5mm Solder Terminals
- Chassis: Diecast Aluminium
For even more information, please refer to the datasheet and graphs below.
PRICE (1 off)
£173.50 +vat +p&p
Big Picture
BM2288 Dimensions93.3 KB
BM2288 Frequency Response Graph77.98 KB

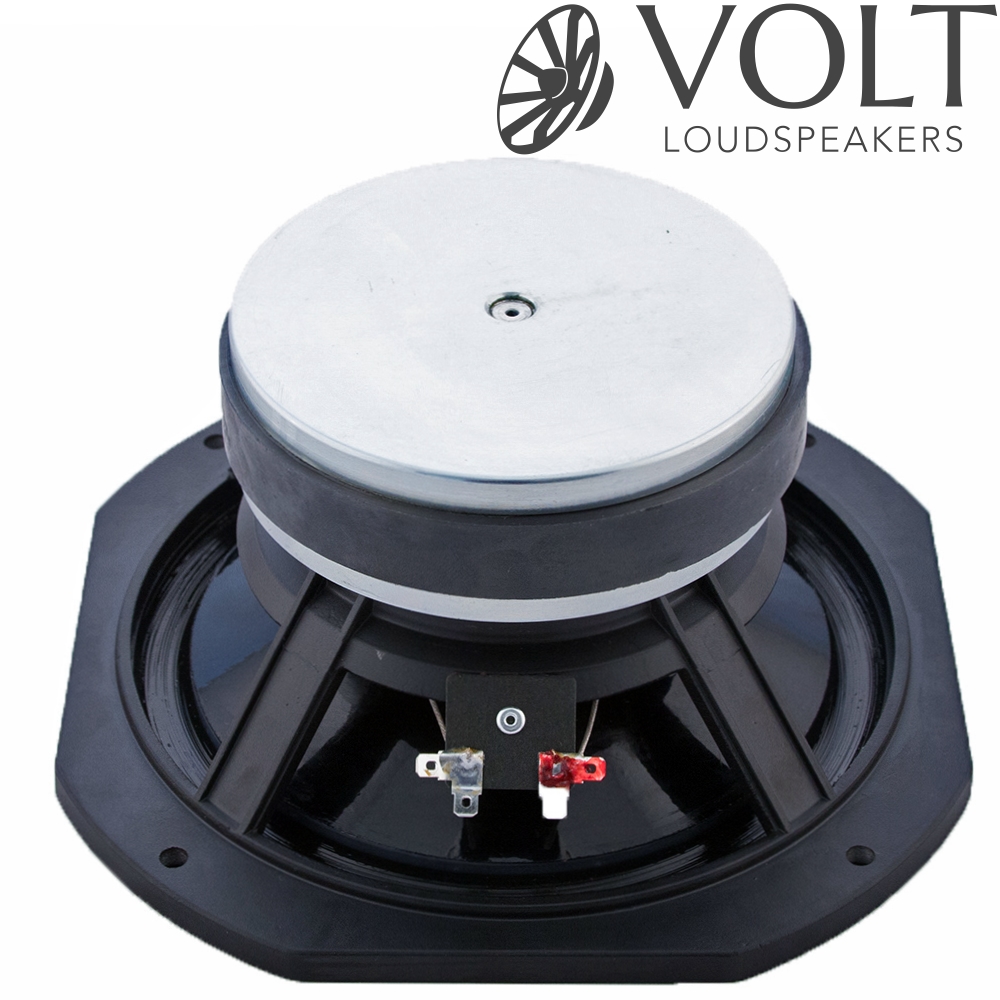

BM2288 Rear View348.77 KB
BM2288 Side View212.54 KB
BM2288 Top View395.18 KB
PDF datasheet
BM2288 Datasheet908.25 KB
