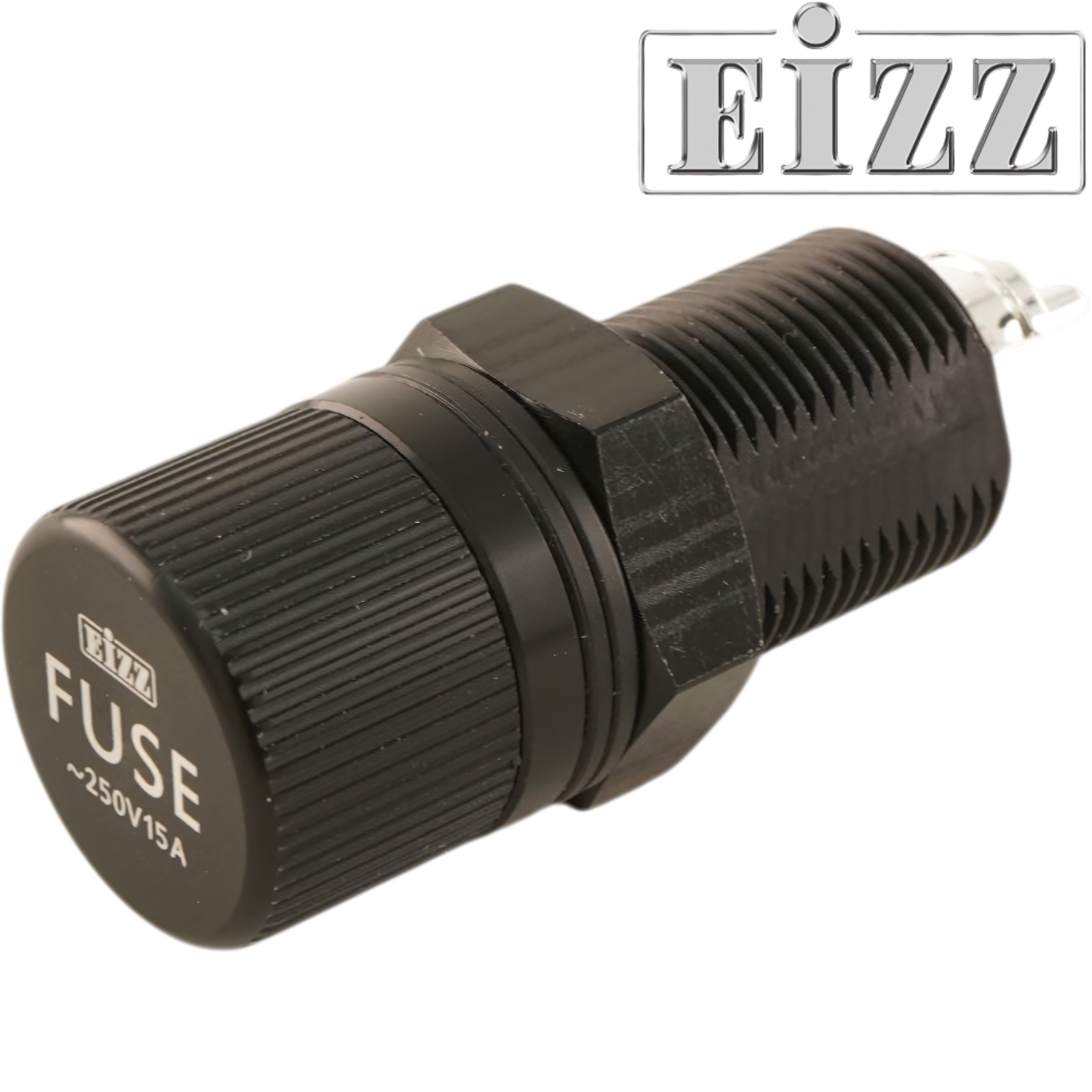

EIZZ EZ-901 Fuse Holder, Silver Plated, Teflon Insulated (20mm fuse)
Click to Zoom
EIZZ's high-quality silver-plated fuse hold has a spring-loaded centre pin that ensures excellent contact. It can be fitted into a chassis up to 20mm thick.
Specifications:
- Silver-plated copper contacts.
- Spring-loaded pins.
- 15mm diameter panel cutout (squared off circle).
- Rating at 250V 15A
- Maximum panel thickness is 20mm.
- Overall dimensions are 20mm diameter x 48mm length
- Wire connections by soldering.
PRICE (1 off)
£30.77 +vat +p&p
Big Picture

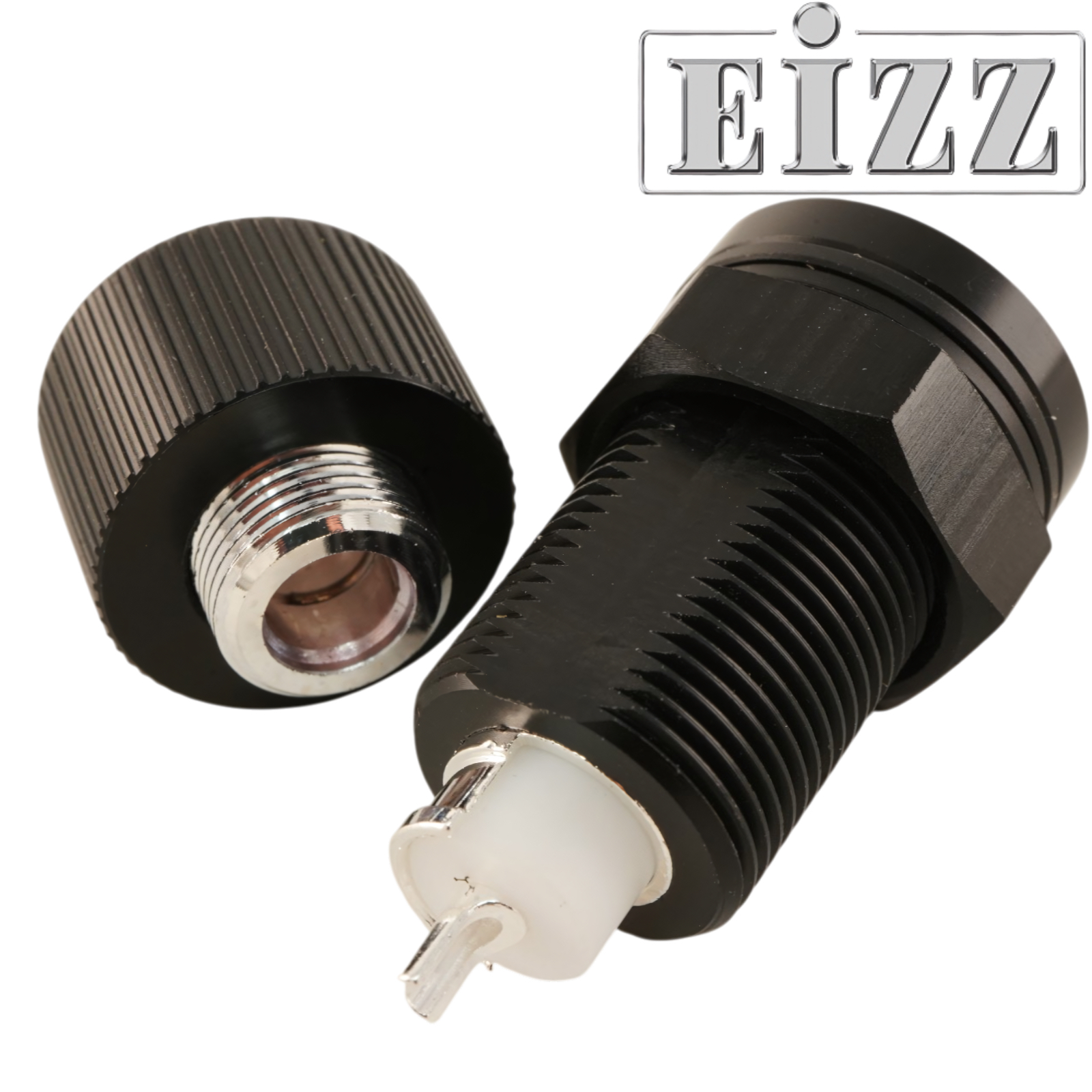

Exploded view273.61 KB
