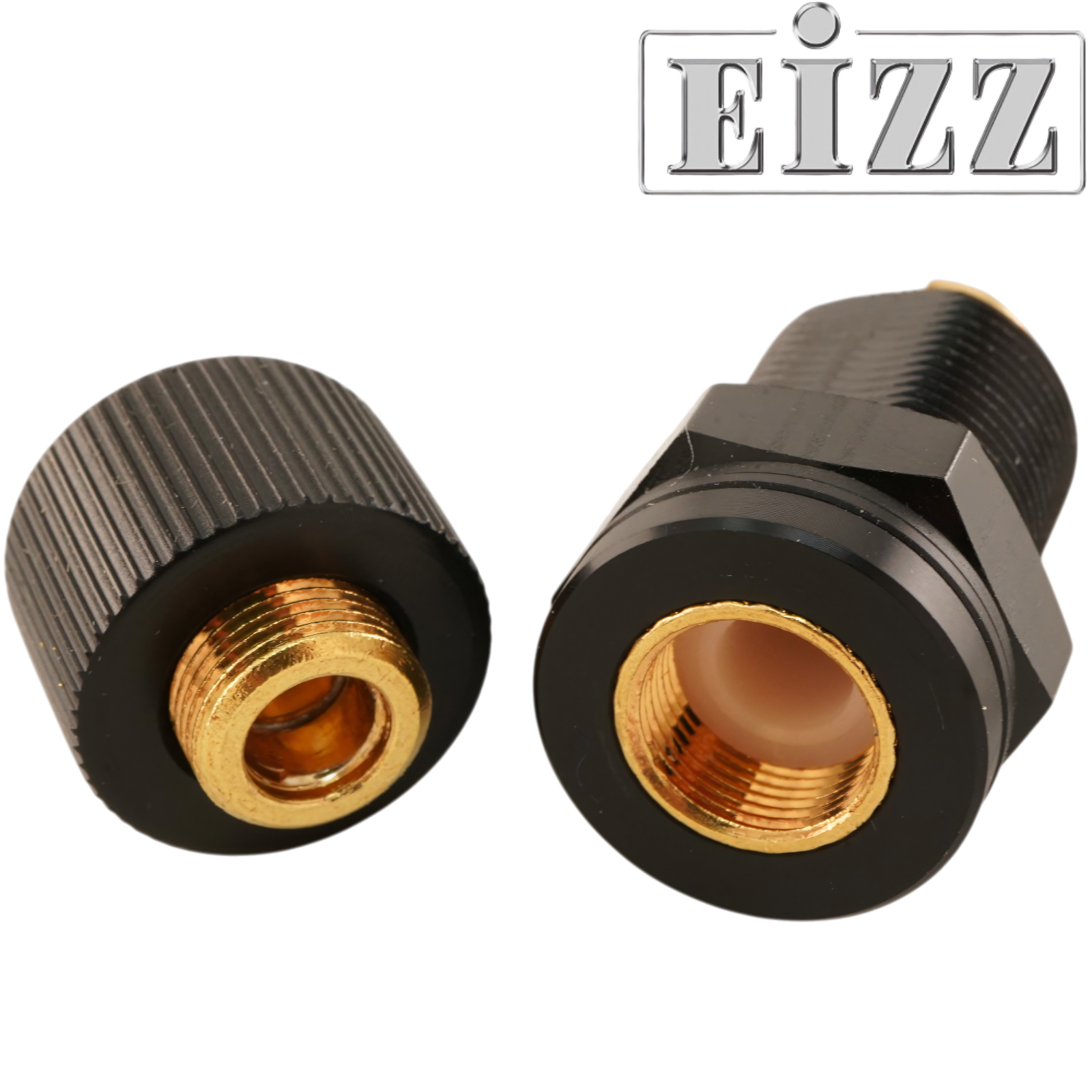

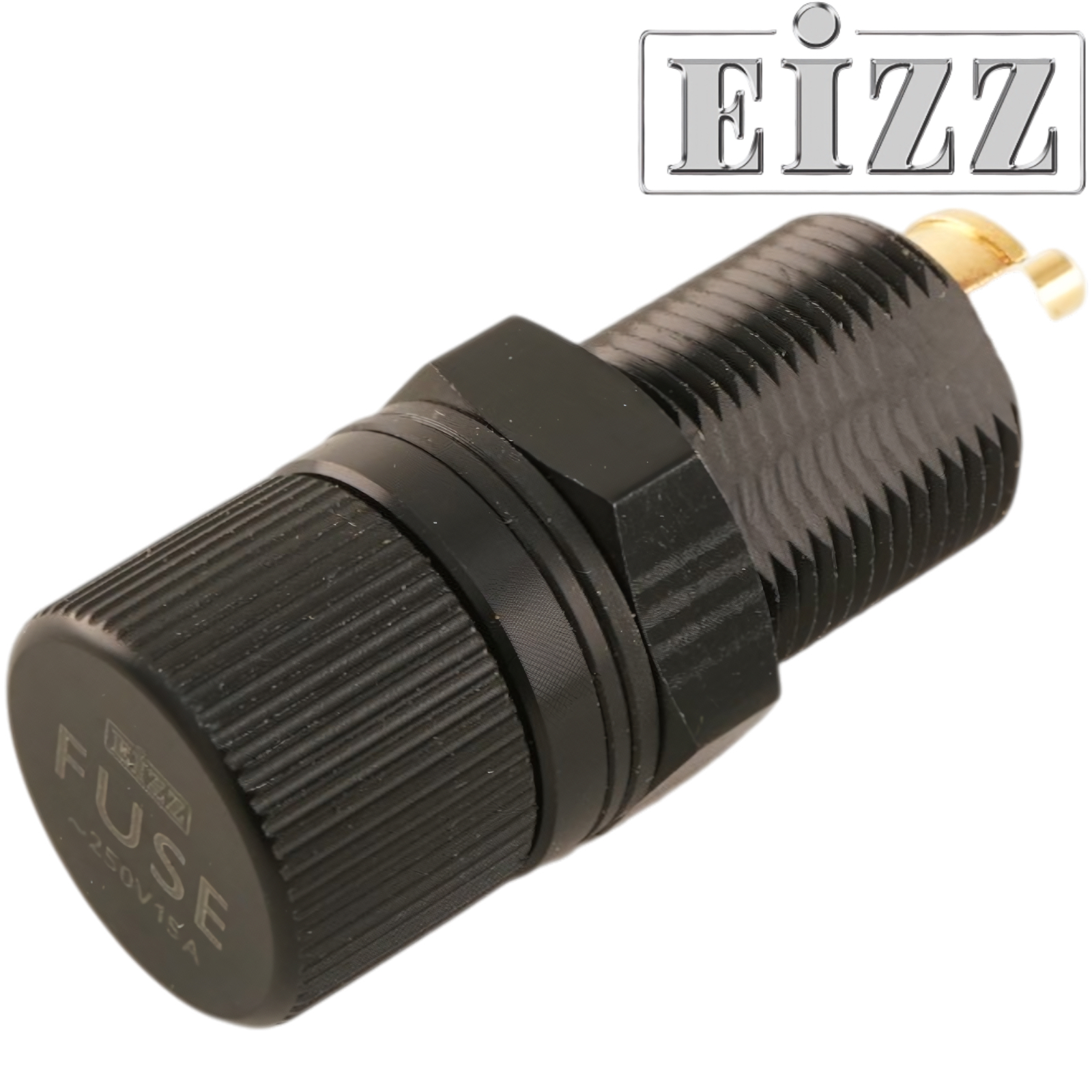

EIZZ EZ-902 Fuse Holder, Gold Plated, Teflon Insulated (20mm fuse)

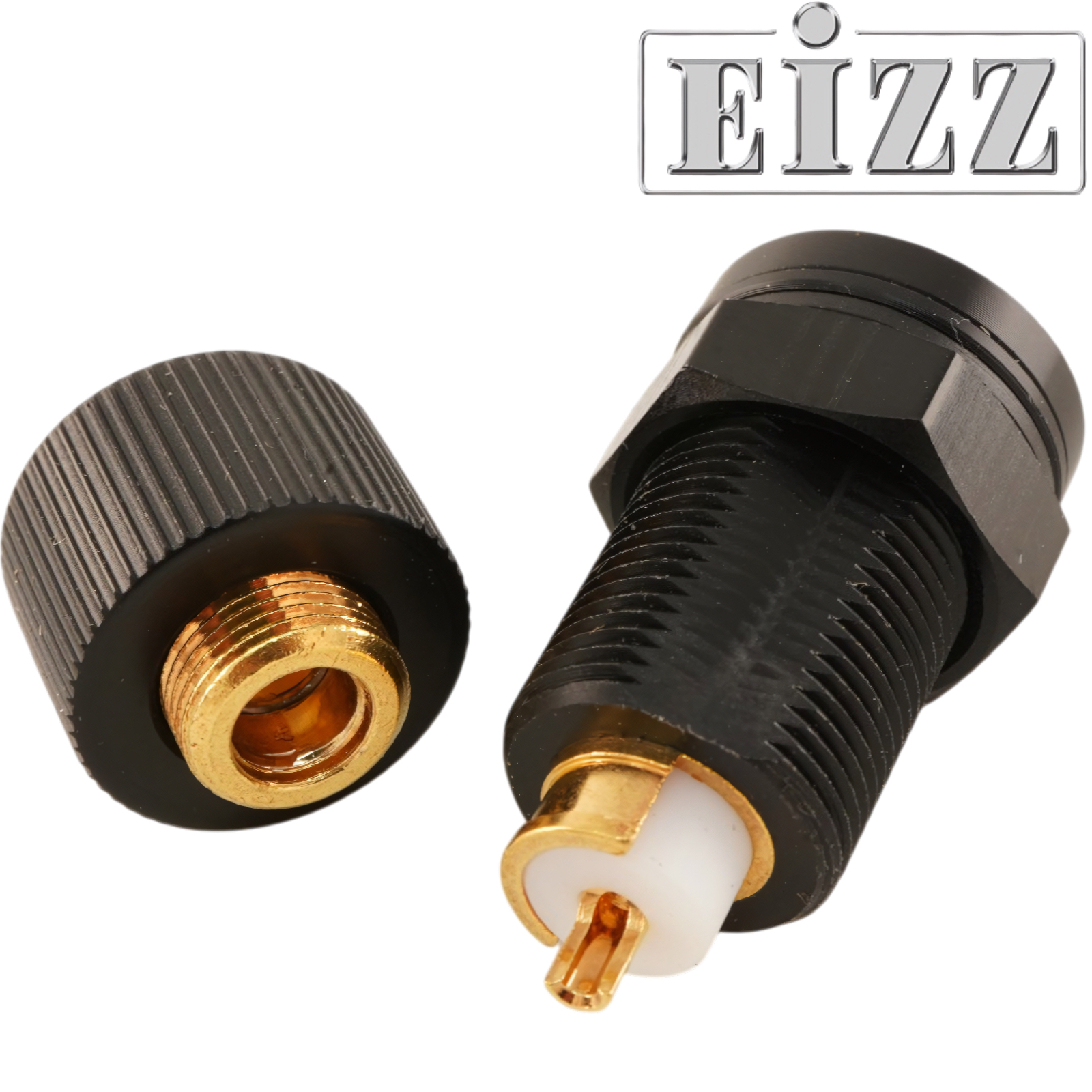

EIZZ's high-quality gold-plated fuse hold has a spring-loaded centre pin that ensures excellent contact. It can be fitted into a chassis up to 20mm thick.

Specifications:

• Gold-plated copper contacts.
• Spring-loaded pins.
• 15mm diameter panel cutout (squared off circle, the width of the square is 13mm).
• Rating at 250V 15A
• Maximum panel thickness is 20mm.
• Overall dimensions are 20mm diameter x 48mm length
• Wire connections by soldering.

PRICE (1 off)
£30.77 +vat +p&p
