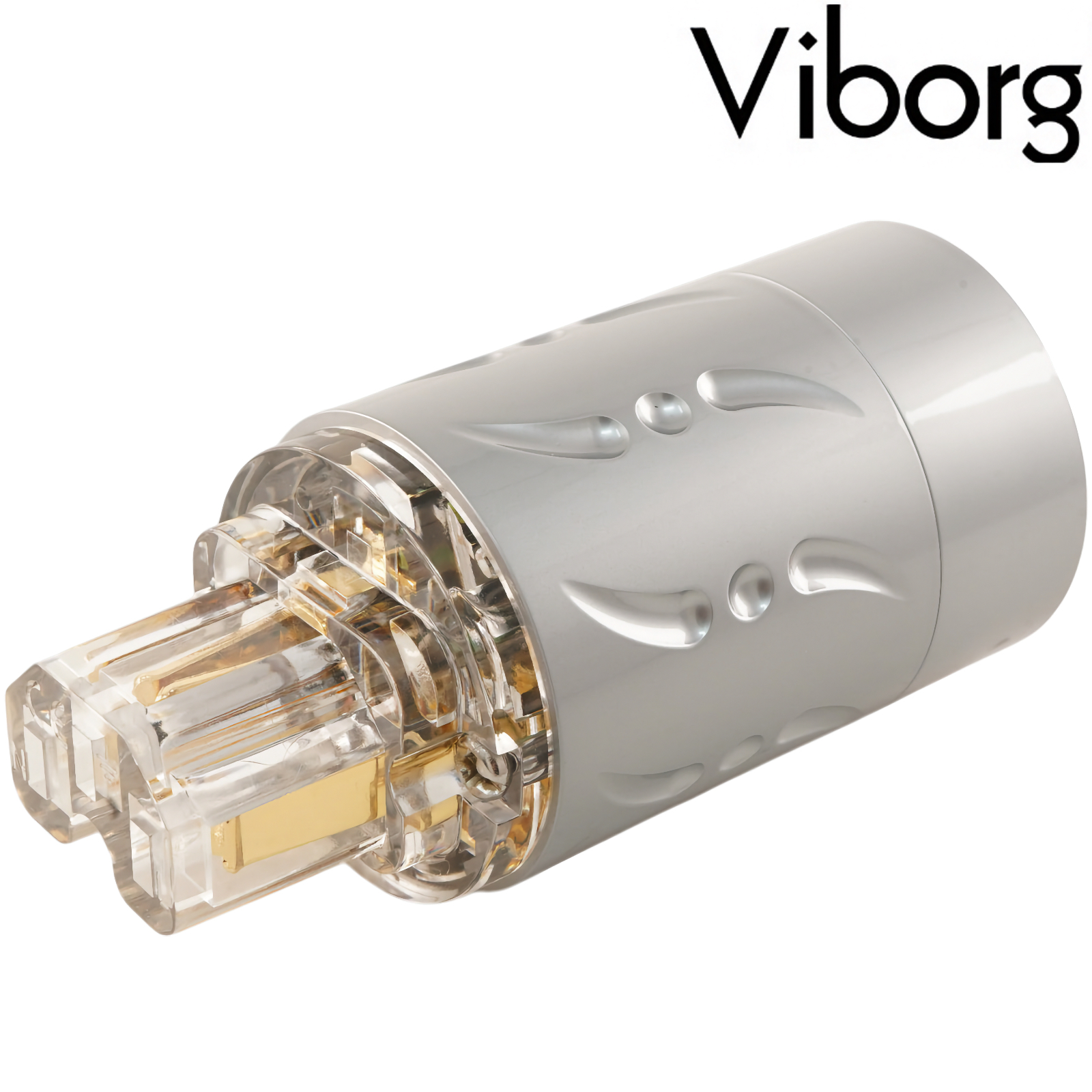

Viborg VF512G IEC C15 Connector Pure Copper, Silver/Gold-plated
Click to Zoom
The Viborg VF512 is 3-layed plated IEC C15 Connector designed for high-quality power cable assemblies, combining reliable performance with a premium finish. Featuring pure OFC copper conductors for excellent conductivity, a robust set-screw connection system, and an aluminium alloy body to help reduce EMI/RFI interference, it is ideal for demanding hi-fi power applications.
The secure cable clamp accommodates large-diameter cables up to 18mm, making it well suited to serious audiophile-grade mains cables.
3 -Layer Plated :
- Oxygen Free Copper Plated
- Silver Plated
- 24K Gold Plated
Specifications:
- Conductor: Pure Copper
- Body: Aluminium Alloy
- Transparent Topper: Bayer-2805(Germany Made)
- Dimensions: 63.7mm H X 40mmφ Over Length：81.5mm
- Connections: Set Screws
- Suitable Max Wire: 5.5MM
- Rating: 15A/125V 10A/250V
- Accommodates max cable: up to 18mm
PRICE (1 off)
£35.69 +vat +p&p
Big Picture

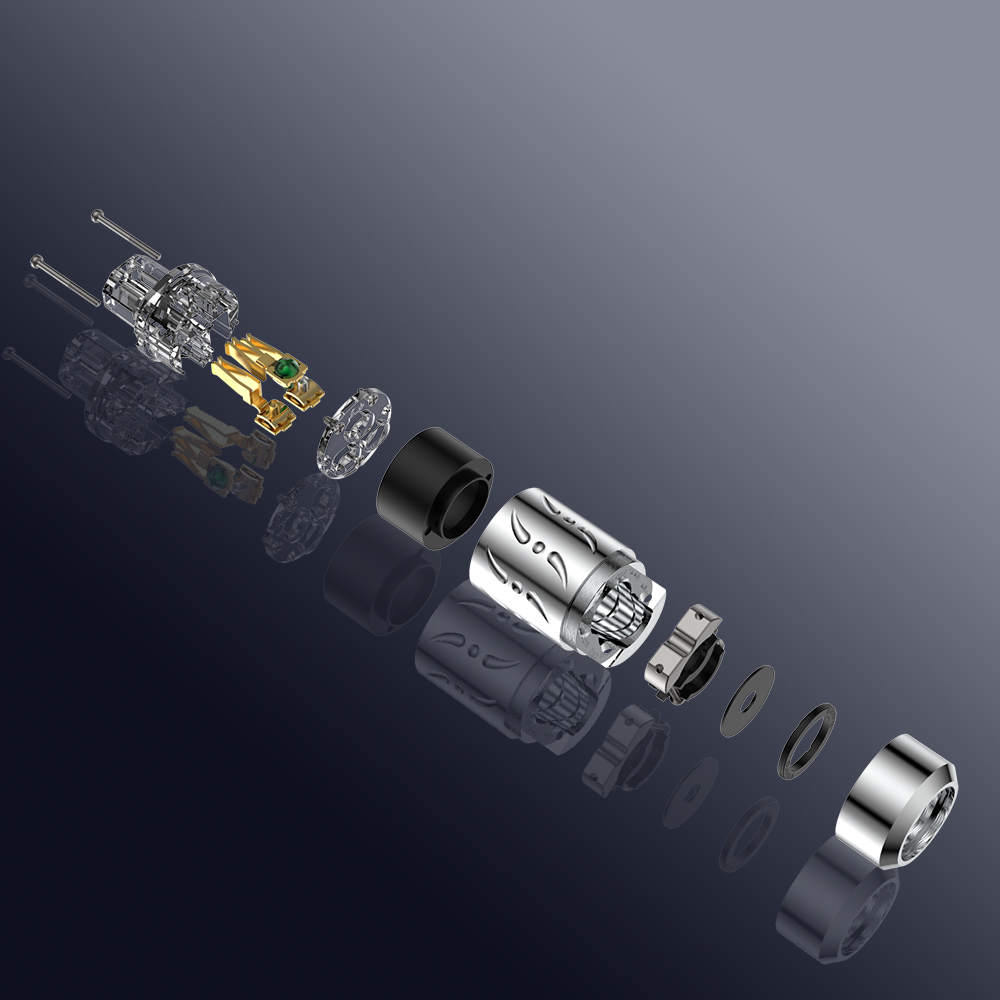

Viborg VF512G Disassembled211.42 KB
