Mills Resistors

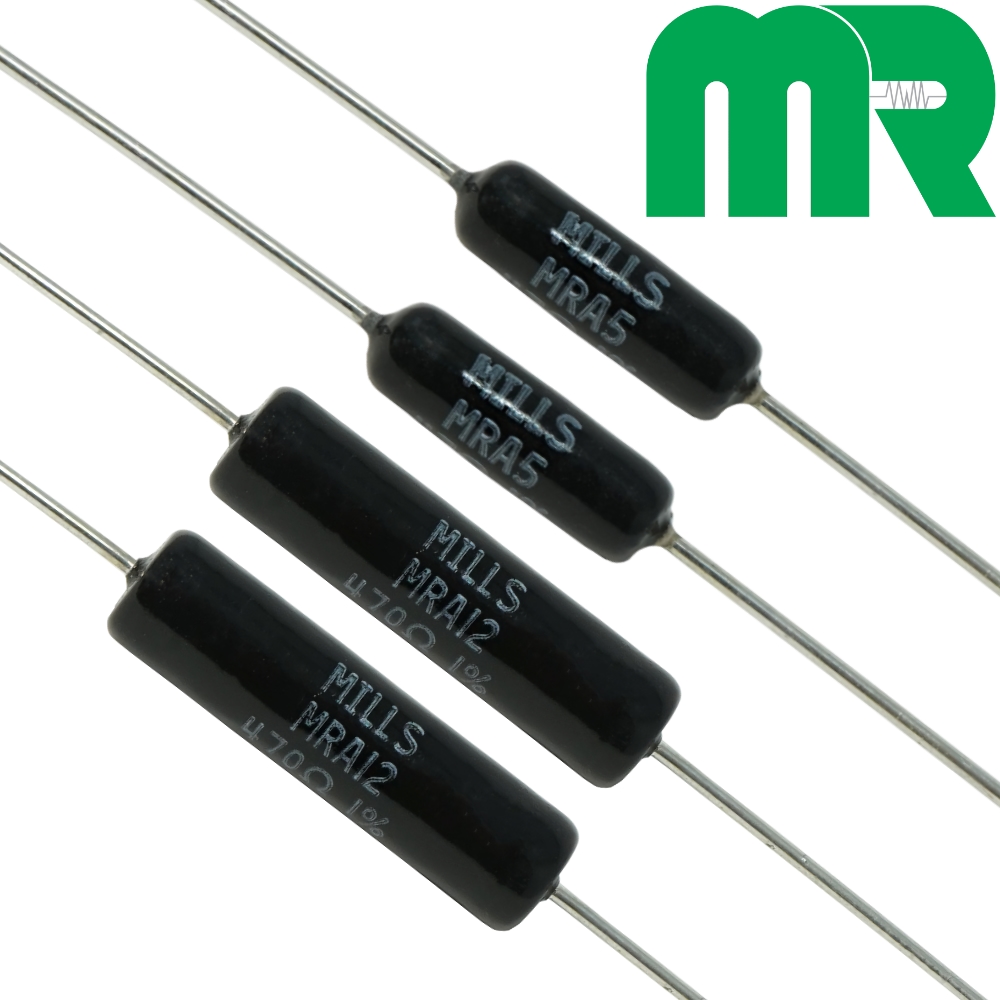

Mills Series Non-Inductive wire-wound, axial-bodied power resistors are very popular in audio, infinitely better than the ceramic "grey" type. An Aryton-Perry design with tinned copper leads and silver-plated end caps. The core material is an alumina ceramic, providing significantly broader heat dissipation than normal steatite ceramic core. There are no magnetic materials used in these resistors. Applications include cathode resistors on valve output stages, power supplies, valve anode resistors and speaker crossover networks. We stock the MRA12, 12W range and the MRA05, 5W range. Due to increased surface area, it is sonically better to use a higher power resistor. Tolerance is 1%, 20ppm.
PLEASE NOTE that Mills now finished their resistor with a BLACK finish. We do have a few older resistors in BROWN.
DIMENSIONS:
MRA12, 12 Watts
BODY: diameter: 8mm, length: 32mm
LEAD: diameter: 1mm, length: 30mm
MRA05, 5 Watts
BODY: diameter: 4.5mm, length: 15mm
LEAD: diameter: 0.8mm, length: 35mm
If you are looking for a specific value, we have added a RESISTOR FILTER to speed your search up.
PRICES:
MRA05, 5 Watts:
0.1R to 470R - £8.27 + vat each
500R to 1K8 - £10.78 + vat each
2K to 3K9 - £11.77 + vat each
4K3 to 27K - £12.75 + vat each
MRA12, 12 Watts:
0.1R to 330R - £12.24 + vat each
390R to 2K4 - £13.26 + vat each
2K5 to 6K8 - £16.33 + vat each
7K5 to 15K - £18.37 + vat each
18K to 91K - £19.42 + vat each
